Indoor spotlight LD1093

outdoorfor boatcockpit

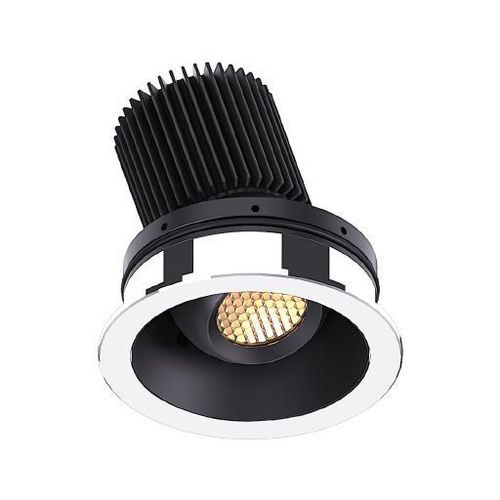

The LD1093 is a high-power, IP67, adjustable recessed LED downlight engineered specifically for demanding marine environments. This modular lighting solution comes with a trimmed bezel, and is also available with a flush mount 'Zero' Trimless bezel (LD1093Z). It has an innovative ball joint allowing the lens assembly to be rotated 360°, tilted at up to 25° and locked in place with a simple one-handed twist. Post-installation focusing is quick and efficient, with no need to remove the product from its mounting surface. The LD1093 is compatible with a variety of concealed fixing options, making it adaptable to a wide range of ceiling types, including thicknesses down to 1mm. With a light output exceeding 1000 delivered lumens, this product is available with the E3 or N1 LED engine, offering colour temperatures ranging from 2200K to 5000K. Choose from a variety of beam angles, from 12° to 65°, as well as two elliptical options. Designed for adaptability, this robust downlight ensures exceptional thermal management and light performance, making it the ideal solution for marine environments. Key Features - Trimmed bezel for simple spring/sleeve or expansion installations. - Innovative lockable 360° rotating ball-joint can be positioned in any direction and tilted up to 25° for ultimate flexibility when focusing onsite - Quick and easy on-site focusing once the product is installed - Very shallow depth, ideal for height restricted applications - Rated IP67 - Interchangeable optics and glare control accessories including honeycomb louvre - Beam angles ranging from 12° Narrow, to 65° Extra Wide, and 2 Oval options - E3 and N1 LED engines available, producing up to 1032 lumens in 3000K at 700mA - Single optic produces superior beam shape and no multiple shadows - High quality machined bezel available in: Polished & Passivated 316 Stainless Steel, 316 Stainless Steel, White (RAL 9016), Black (RAL 9005), Classic Bronze, Textured Mars Bronze, Textured Fir Green, Gunmetal Grey and any RAL colour - Various hidden fixing methods for multiple ceiling types - Contains our integral moisture guard (anti-wicking barrier), stopping water ingress from going up the cable into the product from incorrect IP-rated connections - Switched, 0-10V, Casambi, DMX, DALI or Mains dimmable drivers available Applications Downlights, Wall Wash, Yacht Lighting, (600lm-900lm) Compact+ range, NEW Product, CB Certified Fixing /493XPR-Expansion Ring, /SC-Spring Clips, /493S-Sleeve + Spring Clips LED Information E3 LED Engine - up to 10W @ 700mA N1 LED Engine - up to 14W @ 700ma Materials Black anodised aluminium body, 316 stainless Steel bezel, Glass IP Rating IP67 Accessories /HL-Honey Comb Louvre, /HT1093-Hand Tool - Model: LD1093 - Brand: LightGraphix - Light output: >1000 lumens - Colour temperature: 2200K - 5000K - Beam angles: 12° to 65°, 2 elliptical options - LED engines: E3 (up to 10W @ 700mA), N1 (up to 14W @ 700mA) - Body: Black anodised aluminium - Bezel: 316 stainless steel, multiple finishes - IP rating: IP67 - Fixing: Multiple concealed options - Accessories: Honeycomb louvre, hand tool
