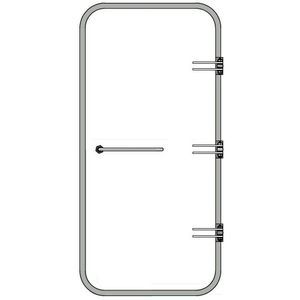

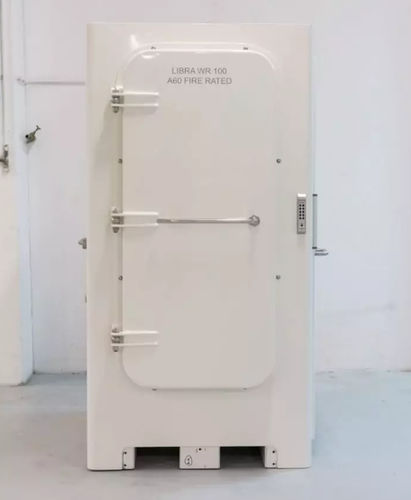

Ship door WRD-A60 S3-045

waterproofA60steel

The Libra WRD Series is a robust and heavy duty door type. The A60 Watertight door is suitable to withstand A60 fire requirements, and they are suitable for installation in watertight compartments with up to 4,5m internal pressure. They are Type Approved and MED certified by DNV-GL and ABS. Maximum size according to our certificates is: CO (Clear Opening) = 910 x 2000mm (width x height). Other sizes can be discussed upon request. Moving parts made of high quality stainless steel Adjustable moving parts Adjustable frame brackets on request Angle profile frame Quick-acting or wheel-operated locking system 100 mm corner radius Sice according to request Standard surface treatment – sandblasted and primed Special surface treatment on request Thermal insulation already in construction of door Watertight certificate available from: DNV/GL, BV, Lloyds, Rina and ABS
