Wind vane sensor CV7-V-USB

temperatureanemometermarine

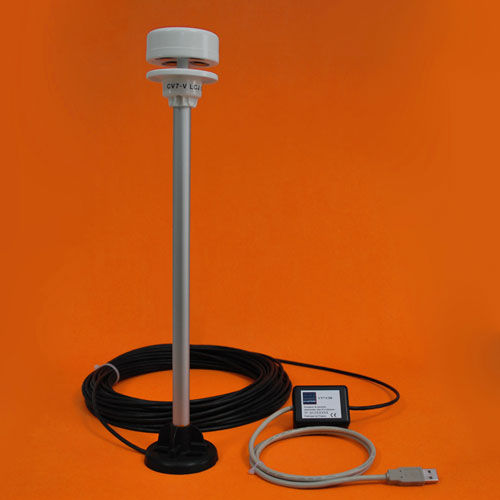

CV7 -V wind vane-anemometer combined with an opto-isolated USB interface, fitted on a vertical pole. CV7-V wind vane-anemometer with USB junction box. The wind sensor is mounted on a vertical pole and is suitable for power boats. This model is equipped with a junction box with 2 standard USB outputs in order to use wind data (speed, angle and temperature) thanks to dedicated or navigation software. The sensor power is supplied by a voltage converter via the USB port; the NMEA0183 input is isolated by an opto-coupler system. It is an ideal solution to obtain temporary measurements via a computer with Plug and Play function. SPECIFICATIONS Cabling: USB 2.0 port Measurement range: Wind speed: 0.25 to 80 knots Wind angle: 0 to 359° Temperature: -15°C (without icing) to +55°C Measurement sensitivity: Wind speed: 0.25 knots Wind angle: +/-1° Air temperature: +/- 1°C NMEA0183® sentences: IIMWV: Angle, Wind speed, Measurement validity WIXDR: Air temperature PLCJ: manufacturer’s data PLCJE: manufacturer’s data Transmission speed: Bd 4800 Complies with the European CE standard COMPATIBILITY CV7-V-USB – ultrasonic wind sensor – Virtual COM port (driver USB) NMEA0183® Standard – Bd 4800 Software: Adrena, FT NavVision, MaxSea, Noé, OpenCPN, ScanNav, Seapro, Sodena, StatMETEO. DELIVERY CONTENTS – Ultrasonic Wind Sensor CV7-V with 310 mm vertical stand – Mounting Bracket – 25 m cable – 4 X 0.22 mm² – USB junction box – User and installation manual – 2–year warranty, parts and labour, in our premises
