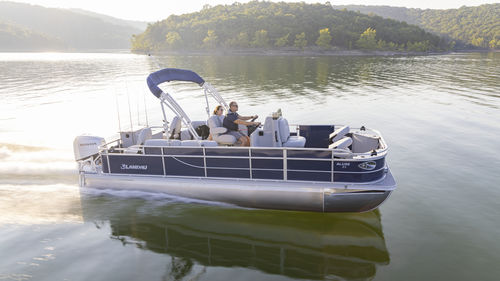

Multihull pontoon boat A'Lure 23CC

outboardtri-tubeopen

Overview
The A’Lure 23CC is a center-console pontoon designed for offshore and inshore fishing operations. It features a dedicated helm with GPS fish finder, multiple livewells and configurable pontoon (log) arrangements to match payload and performance requirements.

Configurations / Tables
BASIC (Options: None)
Overall Length: 24 ft
Deck Length: 22 ft 10 in
Beam: 8.5 ft
Log Number: 2
Log Size: 21 x 25 in
Log Gauge: 0.100 in
Approx. Weight: 2127 Lbs
Max Passengers: 11
Max Capacity: 2320 Lbs
Max Horsepower: 115 HP

TRI-LOG (Options: Tri-Log)
Overall Length: 24 ft
Deck Length: 22 ft 10 in
Beam: 8.5 ft
Log Number: 3
Log Size: 21 x 25 in
Log Gauge: 0.100 in
Approx. Weight: 2382 Lbs
Max Passengers: 12
Max Capacity: 2567 Lbs
Max Horsepower: 150 / 200 *HHP Package

BRUTUS TRI-LOG (Options: Tri-Log + Brutus Logs)
Overall Length: 24 ft
Deck Length: 22 ft 10 in
Beam: 8.5 ft
Log Number: 3
Log Size: 21 x 28 in (Brutus)
Log Gauge: 0.125 in (Brutus)
Approx. Weight: 2509 Lbs
Max Passengers: 13 / 12 *HHP Package
Max Capacity: 2664 Lbs
Max Horsepower: 150 / 200 *HHP Package

Standard Equipment

• Two U-shaped pontoon logs with 0.100 in gauge walls and nose cones
• Landau High Quality Deck System
• Rotationally molded seat frames with water management system
• Marine-grade upholstery vinyls with protective finish
• 2 in aluminum extruded floor joists on 16 in centers
• 27 gallon direct-fill fuel tank built into motor well
• Center fiberglass console with GPS fish finder & windscreen
• Captain's chair with arms on tall pedestal
• Four fold-down fishing seats
• Bluave® Bluetooth-ready AM/FM marine stereo system
• Dual lounge seats with lean backs
• Livewell/seat in front of console
• Stainless steel fasteners
• Rear fish station with livewell
• 3/4 spray shield
• Rod holders in rear
• Gauge package (tach, fuel)
• Fisherman's bow storage - dry storage with USB port and aerated bait well
• 12 volt trolling motor harness
• Standard wheelchair accessible bow gate
• Gate floor stops
• 4 stainless steel cleats
• Bow & stern stainless trailer tie down U-bolts
• Stainless steel rear boarding ladder with four steps
• 7 in Simrad GPS-fish finder
• 12 volt power outlet at console
• Woven vinyl flooring
• Console access hatch
• Two battery boxes
• Cup holders - center console
• 2 removable rod holders
• 2 rod holder receptacles

Exterior Color Options

• Merlot
• Deep Blue
• Pearl
• Matte Black
• Sage Green
• Mocha
• Charcoal
• Midnight Black

Top Panel Options

• Charcoal
• Deep Blue
• Matte Black
• Merlot
• Metallic Sand
• Pearl

Interior Vinyl Options

• Grey
• White
• Taupe
• Cognac

Optional Equipment
Performance

• Tri-Log package (includes 3/4 spray shield, 32 gallon gas tank)
• Full keel dual and tri-log
• Full spray shield
• Upgrade to 46 gallon gas tank (requires Tri-Log)
• Lifting strakes (requires Tri-Log)
• HHP tag (includes lifting strakes, hydraulic steering) requires Tri-Log package
• HHP tag Brutus (includes lifting strakes, hydraulic steering) requires Brutus Tri-Log package
• Upgrade to Brutus logs: 0.125 in gauge log wall thickness and 28 in log height
• Atlantis deck (increases max HP to 200)
• Upgrade to 24-volt trolling motor harness
• 25 in transom
• Dual battery shut off switch

Console & Sound Upgrades

• Tilt steering
• Hydraulic steering
• Power assist with hydraulic steering
• Add courtesy light on console
• Add hour meter
• Add trim gauge - Honda, Mercury, or Yamaha
• Add interface - Honda, Mercury, Yamaha, or Suzuki
• Speakers (2 additional)

Addons & Extras

• Add mooring cover
• Add ski tow - walk thru
• Add tetra pad (tube storage over ski tow)
• Add portable rod holder insert(s) (no base)
• Add portable cup holder(s)
• Add starboard gate
• Wireless pocket charger

Seating & Furniture

• Exchange fishing seat(s) for Island Breeze captain's chair(s)
• Exchange fishing seat(s) for Atlantis captain's chair(s)
• Add complete kidney shaped table - Devil Wood (Tan) or Steel Blue (Grey)
• Add complete oval table - Devil Wood (Tan) or Steel Blue (Grey)
• Add extra table base
• Lockable rod storage
• Upgrade captain's chair to Atlantis captain's chair

Style & Appearance

• Black painted rail package
• Chrome light housing with navigation & docking lighting
• Smoked chrome light housing
• Trolling motor gate
• Docking lights
• LED under seat lighting
• LED underwater lighting (transom)
• Exchange standard cleats for fold down cleats (2 pair)
• Top panel graphic
• Interior package upgrade - Cool Technology Material (must upgrade to Atlantis captain's chair)
• Flooring upgrades

Technical Specifications

• Model: A’Lure 23CC
• Manufacturer / Brand: Landau
• Overall Length: 24 ft
• Deck Length: 22 ft 10 in
• Beam: 8.5 ft
• Log Configurations: 2 logs (Basic) or 3 logs (Tri-Log / Brutus Tri-Log)
• Log Size (Basic / Tri-Log): 21 x 25 in
• Brutus Log Size: 21 x 28 in
• Log Gauge (Standard): 0.100 in
• Brutus Log Gauge: 0.125 in
• Approx. Weight: 2127 Lbs (Basic) / 2382 Lbs (Tri-Log) / 2509 Lbs (Brutus Tri-Log)
• Max Passengers: 11 (Basic) / 12 (Tri-Log) / 13 (Brutus) - HHP package variations indicated
• Max Capacity: 2320 Lbs (Basic) / 2567 Lbs (Tri-Log) / 2664 Lbs (Brutus)
• Max Horsepower: 115 HP (Basic); Tri-Log / Brutus: 150 / 200 (HHP package options)
• Standard Fuel Tank: 27 gallon direct-fill fuel tank built into motor well (upgrade options available)
• Standard Electronics: 7 in Simrad GPS-fish finder (center console), gauge package (tach, fuel)
• Stereo: Bluave® Bluetooth-ready AM/FM marine stereo system
• Flooring: Woven vinyl flooring
• Deck Structure: 2 in aluminum extruded floor joists on 16 in centers; Landau High Quality Deck System
• Seating: Captain's chair on tall pedestal; four fold-down fishing seats; dual lounge seats with lean backs
• Accessibility: Standard wheelchair accessible bow gate
• Other: Livewells (front and rear), rotationally molded seat frames with water management system, stainless steel fasteners and hardware
