Catamaran sailing yacht LAGOON 55

cruisingcharter4-cabin

Introduction

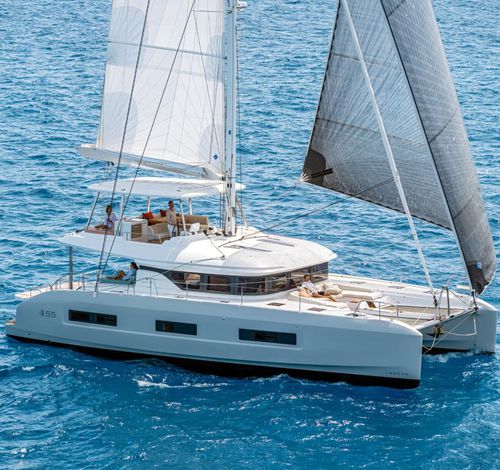

The Lagoon 55 is a sailing catamaran that combines Lagoons design heritage with contemporary naval architecture to provide spacious living areas, efficient sailing performance and multiple layouts for private or charter use.


Awards

• British Yachting Awards 2021 — Multihull of the Year
• Oceanway China Yacht Award 2021 — Best sailing catamaran over 50 ft

Special edition — Millenium


The Millenium edition is configured for charter: six equal-size cabins, extra-large central galley, and redesigned cockpit and flybridge to maximize onboard circulation and guest comfort.




Versions / Layouts

• 4 cabins
• 5 cabins
• 6 cabins — Millenium (charter configuration)
• Salon and flybridge options (standard / sunbathing options)

Technical specifications

• Length overall: 18.38 m (604)
• Hull length: 16.56 m (544)
• Beam overall: 9.00 m (296)
• Draft: 1.55 m (51)
• Air draft: 30.08 m (988)
• Light displacement (CE): 29.2 t (64,386 lbs)
• Sails area upwind: 178 m² (1,915 sq.ft)
• High roach mainsail: 103 m² (1,108 sq.ft)
• Square top mainsail (optional): 109 m² (1,173 sq.ft)
• Self-tacking jib: 69 m² (742 sq.ft)
• Code 0 (optional): 154 m² (1,657 sq.ft)
• Asymmetric spinnaker: 272 m² (2,927 sq.ft)
• Engine — standard: 2 x 110 CV / HP
• Water tank capacity: 960 L (254 US gal)
• Fuel tank capacity: 1,100 L (291 US gal)
• Number of berths: from 8 to 16 (4 to 6 cabins depending on layout)
• CE certification: A: 14 / B: 14 / C: 20 / D: 30
• Interior design: Nauta Design
• Structural warranty (exclusions apply): 7 years
• Engine warranty (Yanmar only): 5 years
• General warranty (exclusions apply): 3 years
