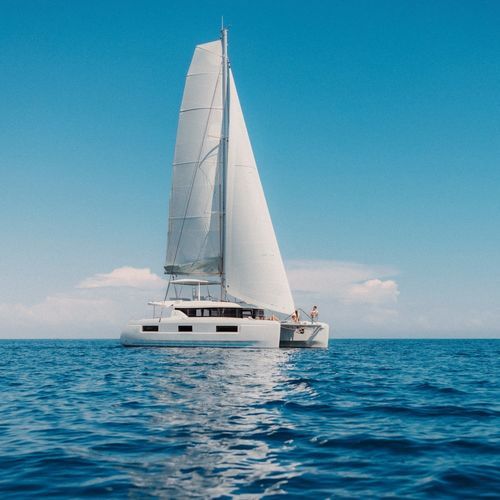

Catamaran LAGOON 46 Iconic

cruising3-cabin4-cabin

The Lagoon 46 Iconic is a redesigned version of the Lagoon 46 catamaran intended for relaxed cruising and anchorages, combining refreshed exterior styling with practical innovations to improve sailing handling and on-board living.


Overview

• Reinvented exterior graphic identity inspired by Lagoon heritage with a redesigned forward lounge offering more sun pads and a safe forward swim ladder for easier access to the sea.
• Layouts adapted for owner use or charter, providing generous interior volumes and bright living spaces optimized for comfort and conviviality.

Key measurements & capacities

• Length overall: 14.5 m (47’7”)
• Hull length: 13.99 m (45’11”)
• Beam overall: 7.96 m (26’1”)
• Draft: 1.37 m (4’6”)
• Air draft (mast height): 23.21 m (76’2”)
• Upwind sail area: 127 m²
• Number of berths: From 6 to 12 (depending on layout)

Design & features

• New forward living/lounge space with additional sun pads and a forward swim ladder for safer access to the sea and more comfortable anchorages.
• Interior design by Nauta Design with refined owner cabins (island beds), bright saloon and flexible galley/cockpit arrangements.
• Awards: Asia Boating Award 2019 — Best Multihull Sailing Yacht.

Innovation

• Visible furling boom mechanism (available on Lagoon 46 and Lagoon 51) designed to allow easier observation and control of reefing, furling and sail handling operations for improved ease of use and precision.

Technical specifications

• Hull length: 13.99 m / 4511
• Length overall*: 14.5 m / 477
• Beam overall: 7.96 m / 261
• Water draft: 1.37 m / 46
• Air draft: 23.21 m / 762
• Light displacement (EEC): 16.3 t / 35,942 Lbs
• Sails area upwind: 127 m² / 1,367 sq.ft
• High roach mainsail: 76.5 m² / 823 sq.ft
• Square top mainsail (option): 80.5 m² / 866 sq.ft
• Self-tacking jib: 46.5 m² / 500 sq.ft
• Code 0 (option): 105 m² / 1,130 sq.ft
• Engine - standard: 2 x 57 CV / HP
• Water tank capacity: 300 L / 159 US GAL
• Fuel tank capacity: 1,040 L / 275 US GAL
• No. of berths: 6 - 12
• CE approval: A: 12 / B: 14 / C: 20 / D: 30
• Interior design: Nauta Design
• Structural warranty (exclusions apply): 7 years
• Engine warranty (Yanmar only): 5 years
• General warranty (exclusions apply): 3 years
