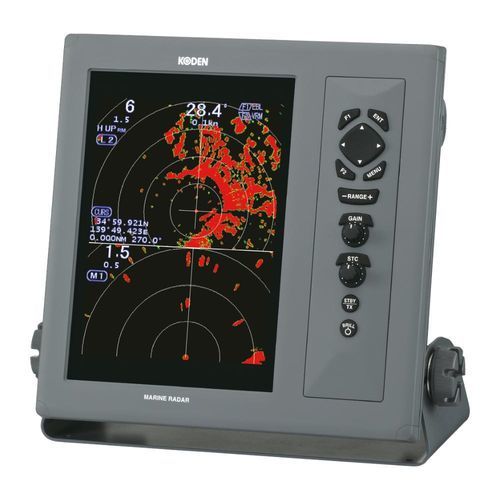

Marine radar MDC-2010

for boatATAcolor

Product overview
10.4-inch color LCD marine radar for navigation. Standard model MDC-2010 with 12 kW output, open 4 ft or 6 ft antenna options and basic ranges from 0.0625 to 72 NM.

Features

• Smart selection for safe navigation
• True trail function: displays movement of targets as tails while land and buoys remain stationary, simplifying moving vs stationary object identification
• Dual range display: simultaneous long- and short-range split-screen view
• Real-time smooth head-up indication: picture moves smoothly with bearing changes
• ATA (Automatic Tracking Aid) optional: automatic acquisition and tracking of up to 50 targets within a set zone, with vector and numeric outputs
• AIS interface optional: when connected to an AIS receiver, displays data for up to 100 targets including name, heading and speed
• CCD camera input: accepts camera feed for above-deck or below-deck monitoring at the helm
• Crisp visible display: LCD with anti-reflection coated filter bonded to prevent condensation and improve sunlight visibility
• RGB output for external monitor connection

Screen image

• True trail function (example)
• Dual range display (example)
• CCD camera input (example)
• ATA function (example)
• AIS interface (option) (example)

Documentation (available items)

• PDF Brochure (MDC-2000e)
• Operation Manual — Rev14 (MDC-2000_OME_Rev14)
• Quick Reference — Rev00 (MDC-2000_QRE_Rev00)

Technical specifications

• Model: MDC-2010
• Display: 10.4-inch color LCD marine radar
• Output power: 12 kW
• Basic ranges: 0.0625 - 72 NM
• Range capability: up to 72 NM
• Antenna: Open 4 ft or 6 ft
• Dimensions: 320 (H) x 364 (W) x 184 (D) mm
• Weight: 8.1 kg
• Power supply: 10.8 to 31.2 VDC
• ATA: optional, up to 50 targets
• AIS interface: optional, up to 100 targets
• CCD camera input supported
• RGB output for external monitor
• Anti-reflection coated filter bonded to LCD to improve sunlight visibility and prevent condensation
