Boat pump Cartridge Combo
bilgewatercartridge

boat pump
boat pump
Add to favorites
Compare this product


Characteristics

Application domain
for boats
Applications
bilge
Fluid
water
Technology
cartridge
Operation
electric, automatic, electro-magnetic
Voltage
12 V
Fuse size
5 A
Material
ABS
Flow rate

Min.: 33 l/min
(8.72 us gal/min)

Max.: 73 l/min
(19.28 us gal/min)

Power consumption

2.5 A, 3 A, 3.2 A

Weight

0.4 kg, 450 kg
(0.9 lb, 15.9 lb)

Height

112 mm
(4 in)

Length

120 mm
(5 in)

Width

84 mm
(3 in)

Description

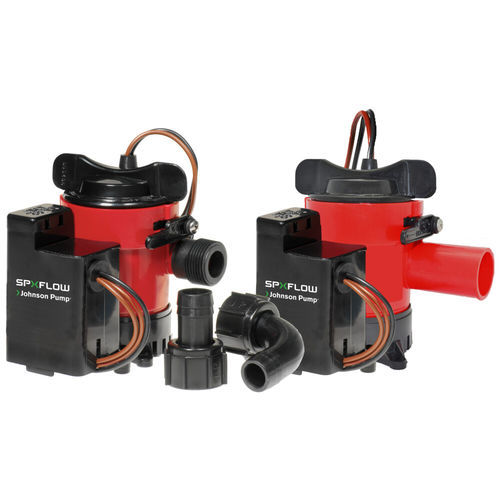

Johnson Pump Marine Cartridge Combo bilge pumps are JPM's proven Cartridge Bilge Pumps combined with a non-clogging electro-magnetic float switch for automatic operation. The switch reacts to the level of water present in the bilge and automatically activates and deactivates the pump. Features Pre-configured with an electro-magnetic float switch for automatic operation Capacities 500 GPH, 750 GPH, 1000 GPH and 1250 GPH Energy efficient Water-cooled motor for long service intervals Compact, all-in-one motor/impeller unit with stainless steel (SS2343) shaft No tools needed for maintenance, no need for complete disassembly. You can now leave the pump casing attached to both the boat and the hoses. 500 GPH, 750 GPH, and 1000 GPH pumps have easy-to-install Dura-Port discharge ports to eliminate stress cracking caused by over-tightened hose clamps 500 GPH, 750 GPH, and 1000 GPH pumps are delivered including both a straight and a 90° smooth elbow Dura-Port as well as a removable check valve Meets the international standard, ISO 8849 marine
