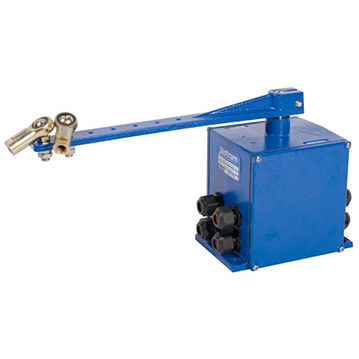

Ship steering system RFU 2000

ship steering system
ship steering system
Add to favorites
Compare this product

Characteristics

Application domain
for ships

Description

The RFU 2000 is built with cast aluminum and stainless steel and designed for heavy duty use in both commercial and pleasure crafts. Two types of devices are available for the RFU 2000 to generate the feedback signal: the standard is the potentiometer type, and second would be the optional contact free Hall Effect. All electronic circuitry necessary to develop rudder feedback signal and rudder angle signal is contained within the RFU 2000. The RFU 2000 outputs both a rudder angle indicator signal and rudder feedback signal, as well as an optional second independent second rudder angle indicator signal. • Built in set of adjustable limit switches (an optional second set of limit switches is available). • Unit operates on any voltage between 10-32 VDC • Waterproof design with unique double sealed shaft and waterproof quick connect cable plugs
