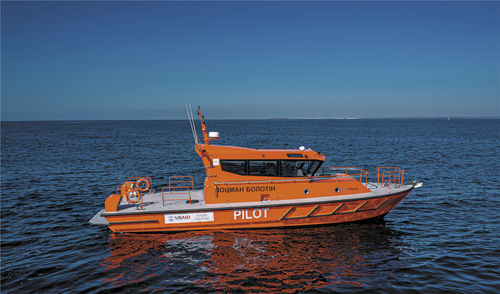

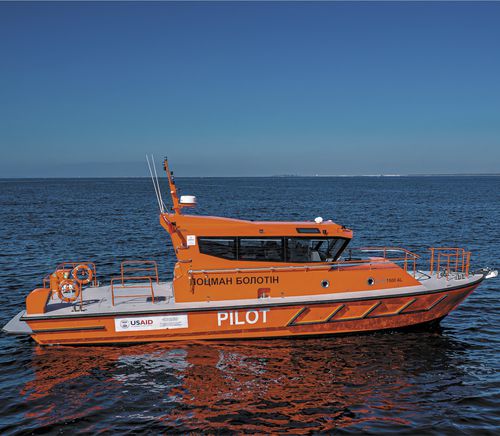

Pilot boat IZ 1500 AL

inboarddieselinboard waterjet

The IZ 1500 AL is a pilot boat constructed from marine-grade aluminum, designed for versatility with the ability to be fitted with water jets or other propulsion systems such as conventional propellers and pod drives. It features a centrally located wheelhouse for optimal all-around visibility, which is essential for pilot operations, and is equipped with shock-absorber seating for 8 persons. The GM-designed hull can be optimized for various propulsion systems, offering high speed and maneuverability, with capabilities of reaching up to 35 knots depending on specifications and engine options.

Technical Specifications

• Length Overall: 15.50 m
• Beam: 4.44 m
• Draught: 0.76 m
• Material: Marine-grade Aluminium
• Seats: 8
• Propulsion: 2 x AJ 340 Alamarin water jets, integrated hydraulic steering
• Engine: 2 x Cummins QSB 6.7
• Speed: 34 Kts
• Class Society/Certification: CE Category B from Turk Loydu
• Delivery Upon Order: 26 weeks

Standard Equipments

• Main Engines: 2 x Cummins QSB 6.7
• Total Power: 2 x 480 HP
• Propulsion: 2 x AJ 340 Alamarin water jets integrated hydraulic steering
• Fuel: 2500 liters
• Fresh Water: 200 liters
• Waste Water: 120 liters
• Crew: 2
• Other Personnel: 6
• Fendering: All round fender bar “D” section and diagonal side bars
• Rubber dimensions: 110 mm x 110 mm Make: ERMAKSAN
• Mooring and Towing: Fairleads double bollard and single bollard
• Anchoring Equipment: Galvanized steel anchor 21 kg with chain shackles bow roller
• Windlass: QUICK 1700 Watt 12V Ø10 mm
• Life-Saving Equipment (SOLAS Approved): Life vest: 8 pieces, life buoy: 1 piece, life raft capacity: 8 persons, Pyrotechnic material (parachute flares: 4, buoyant smoke: 2, hand flares: 4, emergency ladder)
• Lining and Ceiling: Windows: Sides and ceiling
• Electric wipers
• Windscreen heater
• Sliding side windows
• Wheelhouse: Fixed Windows on roof
• Waterthight Aft Door
• Captain chairs: 3-point safety belt and shock absorbers
• Pilot chairs: 2-point safety belt
• Chart Plotter: GARMIN 12”
• Radar: GARMIN GMR 18 HD+
• AIS: GARMIN AIS 800
• Magnetic Compass: RITCHIE
• GPS: GARMIN GPS 24xd
• Echosounder: AIRMAR B 60
• Navtex: NSR NVX3000
• Interceptor: Humphree HA500
• Ship Clock
• Thermometer – Hydrometer – Barometer Set
• Rudder Angle Indicator: Alamarin
• Means for Signalization
• Pyrotechnic Materials
• Navigation Lights
• Ship Horn
• Stationary VHF: GARMIN VHF 115i
• Handheld VHF: Oceansignal V100
• EPIRB: Oceansignal Epirb1pro
• SART: Jotron AIS Sart
• Search Light: Marinco 12V
• Reflector: LHR 10 LED
• Courtesy Lights: LED
• Safety Rails: Fixed deck guard rail and Hadrian-style safety rail
• Manual WC: TMC
• Bathroom with Shower
• Small Mess Area and Storage
• Kitchen
• Booker Hob 220V double
• Refrigerator: 12V Indel B-Cruise 42 liters
• Fuel Level Sensor – 5 holes 10-180 ohm indicators
• Fuel Tank – 1250 lt 5083 Alu
• Water Separator Filter – Volvo Penta
• Electric Bilge Pump – Johnson Ultima Combo 1000 GPH
• Electric Bilge Alarm Check Valve – Jabsco 19 mm
• Water Pump – SeaFlo 12V 45 PSI with Pressure Tank
• Fresh Water Level Sensor – 240-30 ohm 55 cm
• Boiler – Quick Nautic 20 liters
• Waste Water Tank Macerator – Jabsco 12V 900 LPH
• Shower Pump – 12V 750 GPH
• Check Valve – Jabsco 19 mm
• ER Fire System – Aerosol
• Fire Extinguishers – Powder and CO2
• Air Condition System – MBC 12V
• Diesel Heater – Webasto EVO 55
• ER Fan – 12V 750 m3/h
• Cabin and ER Isolation – Elastomeric Rubber Foam
• Battery and Tank Monitoring – Simarine PICO Set
• Shore Power Connection – Marinco 32A
• Battery Charger – Victron Skylla 12V-70Ah 3 output
• Battery Charger – Victron Bluesmart 12V-20Ah 3 output
• Engine Battery – Odyssey AGM 170 Ah
• Service Battery – Odyssey AGM 214 Ah
• 220V Plugs
• Galvanic Isolator – Victron VDI 32
• Battery Protection – Victron
• Generator – PAGURO 6kVA-220V
• Generator Battery – Victron Deep Cycle AGM-90 Ah
• Antifouling Paint
• Protective Anodes: Zinc anodes 1 kg each sufficient amount for wet surface area of the boat

Optional Equipments

• All items as seen on the GA Plan drawing and in these specifications are standard. Requests with other equipment and changing specifications are optional. General Arrangement can be changed without notice.
