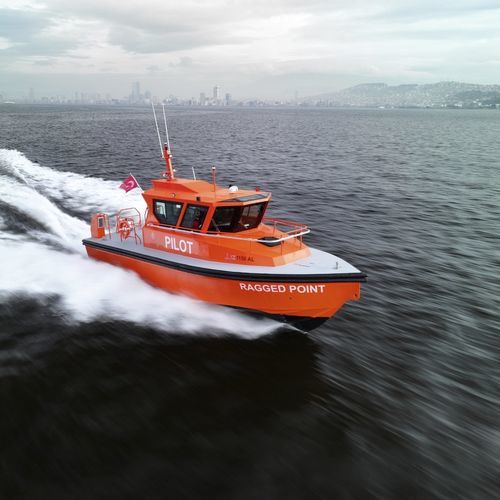

Pilot boat IZ 1150 AL

outboardaluminum

The IZ 1150 AL is a pilot boat constructed from marine grade aluminium, designed for versatility with either conventional propellers or alternative propulsion systems such as water jets or outboard engines. Its centrally located wheelhouse ensures excellent all-around visibility, and it features shock-absorber seating for up to 6 persons. The GM-designed hull can be optimized for various propulsion systems, offering impressive speed and maneuverability, with the vessel capable of reaching speeds up to 30 knots depending on engine options and specifications.

Technical Specifications

• Length Overall: 11.50 m
• Beam: 3.90 m
• Draught: 0.68 m
• Material: Aluminium Hull + Aluminium Cabin
• Seats: 1 + 5
• Propulsion: 2 x Fixed Pitch
• Engine: 2 x CAT C7.1 400Hp @2800 Rpm
• Speed: 35 Kts
• Class Society/Certification: CE Category B
• Delivery Upon Order: 26 weeks

Standard Equipments

• Main Engines: 2 X CAT 7.1
• Total Power: 2 X 400 HP @ 2800 RPM
• Gearboxes: 2 X ZF286A
• Propulsion and Steering: 2 X Fixed pitch propellers with conventional shafting, 2 X Hydraulic cylinders actuated via manual telemotor-controlled two balanced-type rudders blades
• Mooring and Towing: Fairleads, bollards
• Fendering: “D” Section rubber fender, 2 X 110x110 mm
• Cabin Windows: All cabin windows are watertight with tempered glasses
• Cabin Door: Watertight aft cabin door
• Seats: (1) Seat with shock-absorber and safety belt for crew
• Windshield Wipers: (2) Electric wipers with heater and washing on front windows
• Deck Rails: Fixed guard rails
• Front Cabin: Underneath deck with small mess area
• Wheelhouse: Side and ceiling covering
• Fuel System: Fuel tank capacity is total of 650 liters and it includes all necessary items like hoses, fittings, valves, and water separators
• Bilge System: Automatic electric bilge pumps each 750 GPH with level alarms for watertight sections
• Fire System: Automatic fire detection for boat and fixed fire extinguishing system for engine room
• Ventilation System: Engine room fans 24V 750 m3/h
• Main Supply Circuit: 220V
• 50 Hz AC and 12V DC
• Main Engine Battery: Odyssey ODX-AGM31 – 12V
• Battery Charger for Main Engine: Victron Energy 230V, 3 output and general service supply
• Courtesy Light: LED
• AIS: GARMIN AIS800
• Magnetic Compass: Ritchie Voyager S87
• Boat lock
• Thermometer – Hygrometer – Barometer Set
• Rudder Angle Indicator
• Navigation Lights
• Boat Horn
• Stationary VHF: GARMIN 2151
• Life Vest: (6) pieces
• Life Buoy: (1) piece
• Emergency Ladder: (1)
• Portable Fire Extinguishers: (1) CO2 – 6 kg
• (2) DPC – 6 kg
• Antifouling paint for vet surfaces and protective paint for all exterior surfaces
• Protective Anodes: Zinc anodes, 1 kg each, sufficient number for vet surfaces of the boat

Optional Equipments

• All items as seen on the GA Plan drawing and in these specifications are standard. Requests with other equipment and changing specifications are optional. General Arrangement can be changed without notice.
