Boat control unit

Bluetooth

Overview
Sea APP is a mobile application developed to control hydraulic devices installed on a vessel directly from iPhone and Android devices via Bluetooth. The app provides real-time control and status monitoring of connected nautical equipment, simplifying onboard operation and system management.

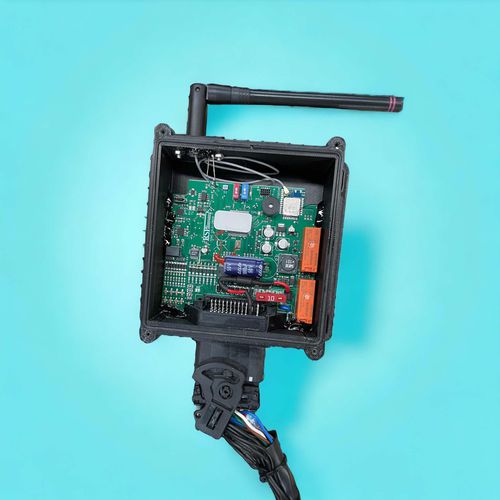

Play Control Unit
Play Control Unit is a control device that connects all your nautical equipment to a single control unit for operation from the app or with a dedicated remote control. It supports multiple interfaces and protections suitable for marine installations.

• 12/24 Vdc power supply
• 10 A protection fuse
• 8 electronic outputs with short-circuit and no-load protection for 12/24 Vdc inductive or resistive loads
• 2 relay outputs 12/24 Vdc for contactor and lighting
• 8 digital or analogue inputs 0–10 Vdc (24 Vdc supported)
• 8 digital ON/OFF inputs with ground activation
• Supports RS485, IR/RF receiver and Bluetooth
• 12-bit ADC (optional 16-bit)
• MicroUSB for service programming and firmware updates
• Molex automotive-type connector
• Wiring via terminals or customizable harness

Compatibility
The control unit is compatible with installed machinery of all makes and accepts diverse connection types, allowing integration without limits.

Technical specifications

• Power supply: 12/24 Vdc
• Protection: 10 A fuse
• Electronic outputs: 8 outputs with short-circuit and no-load protection (suitable for inductive or resistive 12/24 Vdc loads)
• Relay outputs: 2 relays for contactor and lighting (12/24 Vdc)
• Analog/Digital inputs: 8 inputs 0–10 Vdc (24 Vdc supported) and 8 digital ON/OFF ground-activated inputs
• Interfaces: RS485, IR/RF receiver, Bluetooth
• ADC: 12-bit standard, optional 16-bit
• Service/Programming: MicroUSB port for programming and firmware updates
• Connection type: Molex automotive-style connector; wiring via terminals or customizable harness
