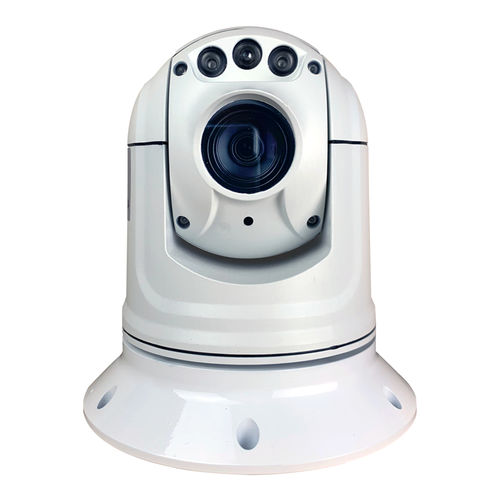

CCTV video camera S118
night visionfor boatsprofessional

CCTV video camera
CCTV video camera
CCTV video camera
Add to favorites
Compare this product


Characteristics

Type
CCTV, night vision
Application domain
for boats, professional, for yachts
Technology
digital
Mounting
dome
Video system
NTSC, PAL
Voltage
12 V, 24 V
Protection level
rugged, IP66, IP67, rugged
Other characteristics
with zoom, remote-controlled
Field of view

58 °

Lens

3 mm
(0 in)

Zoom

12 unit, 30 unit

Rotation

360 °

Height

220 mm
(9 in)

Weight

3 kg
(7 lb)

Operating temperature

Min.: -50 °C
(-58 °F)

Max.: 65 °C
(149 °F)

Description

Smooth, Accurate Pan and Tilt Control Extremely powerful low light performance High Power Infra Red LED Illumination – 150ft Range Single Umbilical Cable with Centralised Connector for Easy Installation Install in Desktop or Hanging Orientation Compatible with All MFD’s Supporting Composite Video Inputs DESCRIPTION Designed to withstand the harshest conditions Iris Sentinel cameras are made from machined and cast aluminium body sections which are anodised and powder coated for maximum protection. Featuring new high spec oil seals and improved stepper motors, our Sentinel cameras move quickly and smoothly with great accuracy. The IRIS-S118 Sentinel PTZ houses a Sony block camera module with 580TVL analogue resolution, 36x Optical and 12x Digital zoom, auto and manual focus and a host of other features expected from a high end imager. An array of 4 high power second generation infra red LED’s provide auto/manual illumination in low light to a range of around 150ft. As with all Sentinel cameras, the IRIS-S118 is water resistant to IP66 and features a heater and anti-fogging facility. Connection to the camera is via a single umbilical cable that plugs into the centre of the base plate for easy installation. IRIS-S118 cameras output analogue video and are directly compatible with all chart plotters that feature a composite video input. They can also be plugged into a CCTV monitor or into a TV via an AV input. The camera is controller via two wire RS485 serial data using Pelco-D control protocols. The camera is supported by our IRIS595 and IRIS-TE01 controllers.
