Boat steering MU75TF

hydraulic

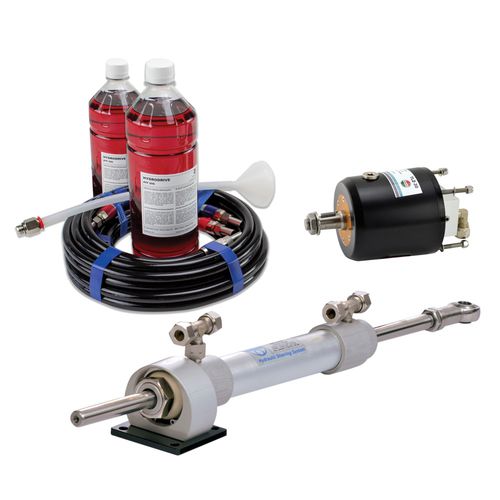

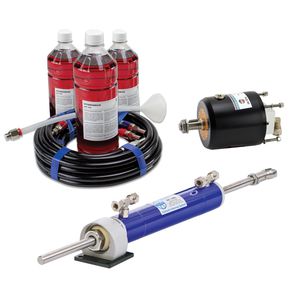

Hydrodrive MU75TF Inboard Hydraulic system for boats up to 12 m (40ft). • Hydraulic pump: TL2-30, 28 cc,/rev pump., 4 Turns • Hydraulic cylinder: MC75, 114 cc. vol. 225 mm stroke • 7+7 m (23’) high-pressure twin hose set with fittings, 2 L hydraulic oil (E-HVLP 46) (temp.+60°/-30°.) • Removable cup to replace the shaft seals without opening the pump • Output force: 354 Kgf. (780 lbf) • Torque: 80 Kgm. (579 lbf – ft) • Max. Speed: 45 Knots Auto lubricating IGUBAL® spherical bearing support. The pump is made of hardened, hot-pressed aluminium. Anodized and painted pump house, manufactured by precision CNC. Cylinder made from cold drawn, hardened anodized and painted aluminium. Universal fittings – Hydrodrive Systems can be used on every type of engine. Easy installation process.
