Boat steering MU100TF-MRA

hydraulic

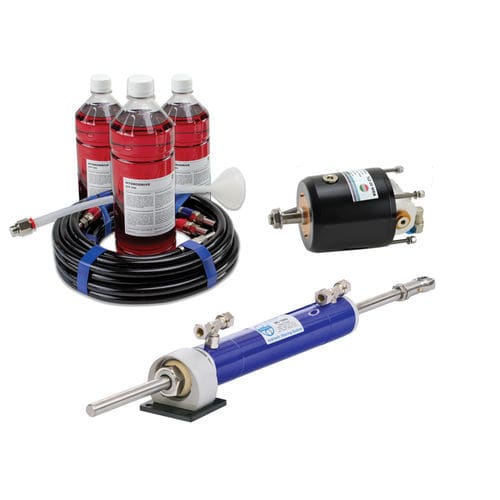

Hydrodrive MU100TF-MRA Inboard Hydraulic system for boats up to 16 mt (52ft) Now comes with Anti-Feedback valve and Automatic Pilot Connection port High Precision Hydraulic pump: TL2-30 MRA with NON-RETURN valve, 28 cc., 5,7 turns Hydraulic cylinder: MC 1000, 160 cc volume, stroke 225mm 8+8 m (26') high pressure twin hose set with fittings, 3 L hydraulic oil (E-HVLP 46) (temp.+60°/-30°.) Output force: 495 kgf (1091 lbf) Torque: 112 kgm (810 lbf-ft) Max speed: 45 kts Pump made by hardened , hot pressed aluminum, Adonized and painted pump house, manufactured by precision CNC Cylinder made from cold drown, hardened adonized and painted aluminium Professional application, high quality, innovative technology, high precision pump. Universal fittings, Hydrodrive steering can be use every type of outboard engines. Easy installation process
