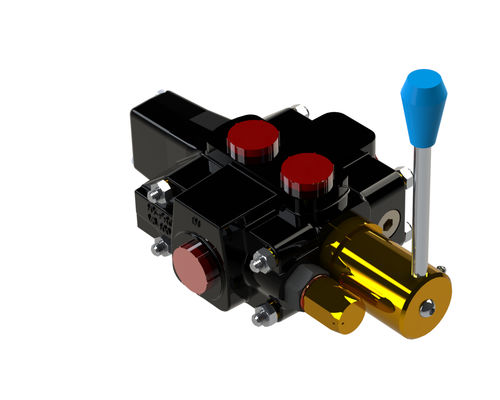

The Hy-Pro V5-60 G1/2 sectional valves are a standard in winch applications across the marine industry. There are control options for either rotary lever or by-pass flow control in conjunction with excellent spool metering to precisely control the winch speed. The valves feature environment-protection of external and internal components to withstand harsh on-deck conditions. The V5-60 valve is suitable for flows up to 60 L/min at 250 bar.
The Hy-Pro rotary lever has been developed specifically to enable the operator precise control of motors and cylinders. The lever swings through an arc of 130° and works by means of a scroll which converts the rotary action of the lever into axial movement of the spool. The centring mechanism has a friction detent feature which positively holds the spool in neutral then maintains the selected position.
Inlet cover: Side or Top ports, with or without relief valve.
Outlet cover: Side or Top ports, with or without Pressure Carry Over (PCO) port.
Spools: Motor ( P, A & B to T) or cylinder (P to T, A & B blocked) configurations.
