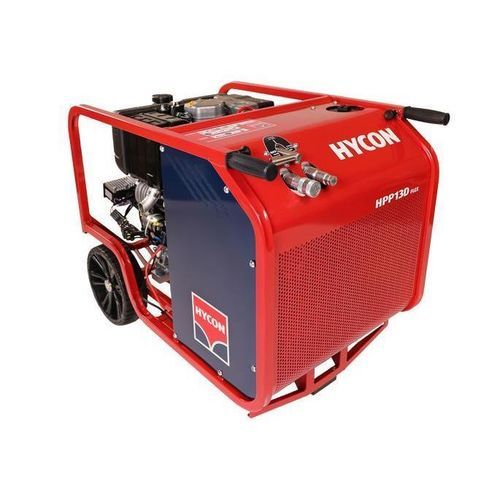

Motor hydraulic power unit HPP13D

for hydraulic installationsdiesel engine

Overview
The HPP13D FLEX is designed to power 20–30 LPM hydraulic tools in confined environments such as tunnels where petrol engines or exhaust fumes are restricted. Its single-cylinder KOHLER KD15-440 diesel engine delivers efficient fuel consumption and sufficient power to run breakers, rock drills, core drills, cut-off saws or submersible pumps.

Design
The HYCON steel frame protects internal components and provides easy access for maintenance. Integrated lifting points and a compact footprint simplify transport and placement on site.

Compliance Note
Not CE or EPA approved — for sale only outside the EU and USA.

Technical data

• Item no.: 2020012
• Dimensions L x W x H [mm]: 860 x 610 x 688
• Weight [kg]: 114
• Oil flow [LPM]: 20-30
• Working pressure [bar]: 120
• Max pressure [bar]: 150
• Engine: KOHLER KD15-440 (10 hp), diesel
• Starter: Recoil / Electric
• Sound power level LWa [dB]: 105
• Not CE or EPA approved (for sale outside EU and USA)
