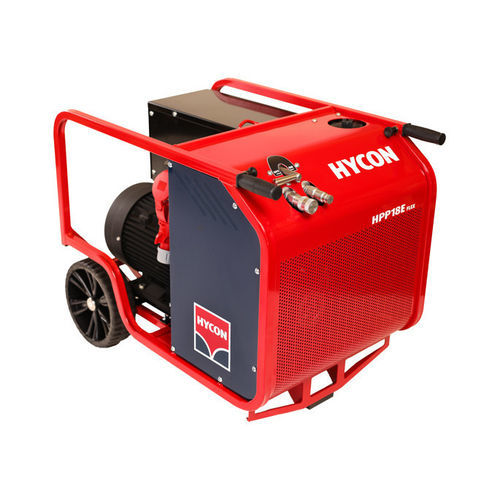

Underwater tool hydraulic power unit HPP18E FLEX

for hydraulic installationselectrically-powered

Overview
The HYCON HPP18E FLEX is equipped with a 13.2 kW (18 HP) motor and offers selectable flow settings of 20, 30, 40 and 46 L/min, making it suitable for professional users in concrete cutting and utility work. The unit provides emission-free electric operation, allowing safe use indoors and in enclosed areas where combustion engines are restricted.
Most conventional electric power packs run the motor at full speed and throttle the hydraulic output. The HPP18E FLEX uses a Variable Frequency Drive (VFD) to adjust motor RPM and directly control flow between the four settings. This approach reduces energy consumption and increases system efficiency compared with simple throttling.

Technical data

• Item no.: HPP18E FLEX
• Article code: 2020211
• Dimensions (L × W × H): 805 × 625 × 704 mm
• Weight: 155 kg
• Oil flow: 20 / 30 / 40 / 46 L/min
• Working pressure: 120 bar
• Maximum pressure: 160 bar
• Motor: Hoyer HMA3 132M2 (13.2 kW, 35A), 3x400/480V, 50/60 Hz
• Sound power level (LWa): 99 dB
• CE approval

Specifications

• Model: HPP18E FLEX
• Motor power: 13.2 kW (18 HP)
• Motor type: Hoyer HMA3 132M2 (13.2 kW, 35A), 3x400/480V, 50/60 Hz
• Variable oil flow settings: 20 / 30 / 40 / 46 L/min (controlled via Variable Frequency Drive)
• Working pressure: 120 bar; Maximum pressure: 160 bar
• Dimensions (L × W × H): 805 × 625 × 704 mm; Weight: 155 kg
• Sound power level: 99 dB (LWa)
• Emission-free electric operation — suitable for indoor or enclosed-area use
• Designed for professional applications such as concrete cutting and utility work
