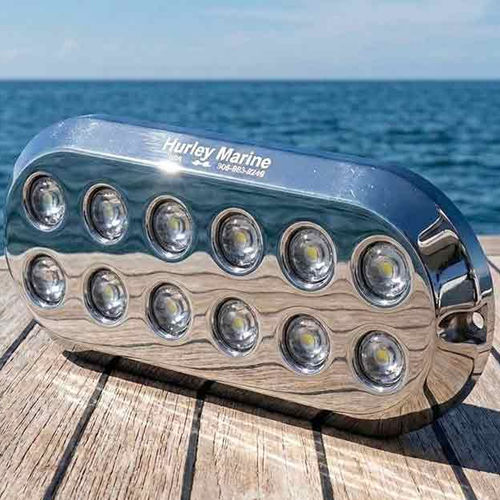

Underwater boat light Sea-Vue® Extreme

for docksLEDsurface-mount

Product overview
The Hurley Sea-Vue® Extreme is a self-contained underwater LED light package designed to provide powerful illumination aft of a vessel while minimizing hull penetrations. All electronics are enclosed in a watertight 316 stainless steel housing with integrated overheat sensors and a water-cooling system to maintain reliable operation. No external driver or power supply is required. Power cable requires only a 1/4" hole above the waterline. Available in White, Blue, or Multi-Color (RGB). Suitable for surface-mount, trim tab, or dock light installations. Made in the USA.

Short features

• 100W Cree LED(s) delivering high output
• 316 stainless steel watertight housing, rated IP68
• Built-in overheat sensors and integrated water-cooling for thermal control
• Self-contained unit — no external driver or PSU required
• Minimal installation: only a 1/4" cable hole above the waterline (no underwater power drilling)
• Available colors: White, Blue, Multi-Color (RGB)
• Mounting: Universal, Trim Tab, Surface Mounted; also usable as dock lights

Package includes

• 2 LED Sea-Vue® Extreme lights
• 2 Trim tab brackets
• 2 cable clams
• Mounting option: Universal, Trim Tab, or Surface Mounted
• Light housing size: 5.5" x 2.4" x 0.5"
• Option to add extra lights for surface-mount installations

Notes

• The Sea-Vue® Extreme produces exceptionally powerful illumination and is recommended for experienced boating applications.
• Statement on product page: SpaceX used, tested, and approved.

Technical specifications

• Model name: Sea-Vue® Extreme
• LED power: 100 Watt Cree
• White fixture output: 8000 lumens, 6000–6500K
• Blue fixture output: 8000 lumens
• Operating voltage: 10–30 VDC
• Current (Blue fixture): 8 A @ 12 V
• IP rating: IP68
• Housing material: 316 Stainless Steel
• Viewing angle: 15 x 60 degrees
• Light housing size: 5.5" x 2.4" x 0.5"
• Cable length: 80" of cable
• Weight: single unit ~3 lbs; pair ~6 lbs
• Typical configurations/pricing: Single unit (each) USD 499.00; Pair (White or Blue 100W Cree lights) USD 999.00
• Designed for: surface mount, trim tab mount, dock mount; self-contained (no external driver)
• Country of manufacture: Made in the USA
