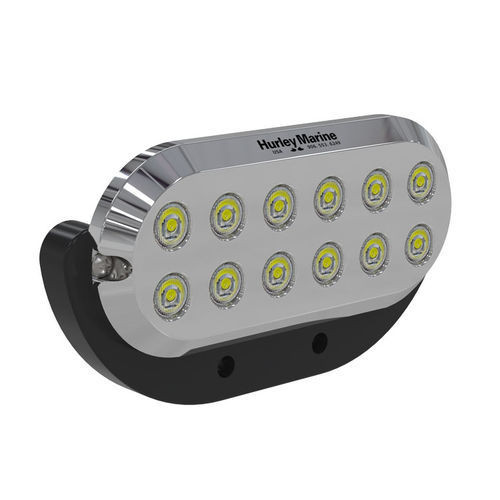

Underwater yacht light Sea-Vue®

for boatRGB LEDsurface-mount

Overview
Hurley Sea-Vue® Extreme is a next-generation underwater RGB LED light package designed for high-output illumination aft of vessels. The self-contained fixtures deliver powerful light while minimizing energy draw. Electronics are enclosed in a watertight 316 stainless steel housing and the design reduces hull penetration; only a minimal 1/4" hole above the waterline is required for the power cable (no underwater drilling needed).

Package includes

• 2 LED Sea-Vue® Extreme lights
• 2 trim tab brackets
• 2 remotes
• Remote module (supports up to four lights)
• 2 cable clams
• Mounting options: universal, trim tab, or surface mounted
• Light housing size: 5.5" x 2.4" x 0.5" (≈140 x 61 x 13 mm)
• Option to add extra light(s) for surface mount installations

Product description
The Sea-Vue® Extreme package supplies self-contained 100 W Cree LED fixtures in IP68-rated 316 stainless housings that produce a wide beam spread suited to accent and task illumination behind a boat. Built-in overheat sensors and an integrated water-cooling system allow the light to operate without an external driver or additional power supply. Installation is simplified for retrofit and new-build applications, with minimal hull penetration and multiple mounting configurations to suit different transom geometries.

Light specifications

• RGB fixture
• 100 Watt Cree (per fixture)
• Approx. 8000 lumens peak
• Operating voltage (light): 10–30 VDC
• Remote module / relay voltage: 12 VDC
• Remote module current draw: 8 A @ 12 V
• IP68 316 stainless steel housing
• Viewing angle: 15° x 60°
• Physical size: 5.5" x 2.4" x 0.5" (≈140 x 61 x 13 mm)
• Cable length: 80" (≈2.03 m)

Usage note
The Sea-Vue® Extreme produces exceptionally high output and is recommended for owners and operators seeking very strong underwater illumination for night operations, display, or work-at-ankle applications.

Technical specifications

• Model name: Sea-Vue® Extreme
• Power source: Cree LED, 100 W (per fixture)
• Peak output: ~8000 lumens
• Operating voltage (light): 10–30 VDC
• Remote module voltage: 12 VDC
• Remote module current draw: 8 A @ 12 V
• Housing: 316 stainless steel, IP68
• Cooling: integrated water-cooling system and built-in overheat sensors
• Beam / viewing angle: 15° x 60° (wide beam spread)
• Light housing dimensions: 5.5" x 2.4" x 0.5" (≈140 x 61 x 13 mm)
• Cable length: 80" (≈2.03 m)
• Mounting options: Universal, Trim Tab, Surface Mounted
• Package options & price range: single light (each) or RGB pair (package)
• Weight (typical): approx. 3 lb (single), 6 lb (pair) (≈1.4 kg / 2.7 kg)
