Patrol boat FLYING FISH 40 MK2

dieselstern-driveinboard waterjet

Description

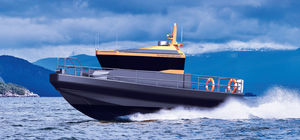

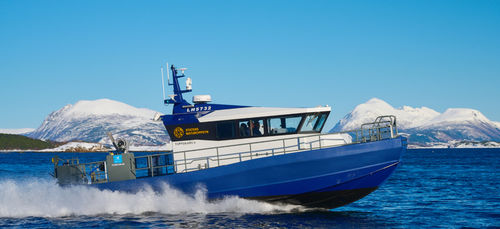

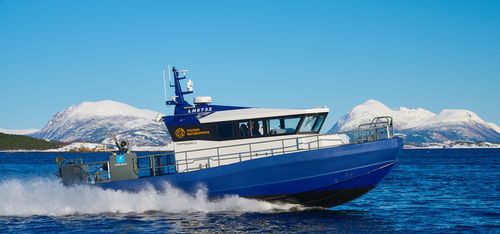

The FLYING FISH FF40 MK2 PATROL is a 12-metre patrol boat designed for coastal and shallow-water operations. Built to ISO standards, the vessel features a low freeboard and shallow draft to facilitate access in restricted areas. The layout supports crew operations and short missions with seating for up to 6 persons and onboard facilities for extended patrols.

TECHNICAL DATA
Overall length: 12 metres
Breadth extreme: 3.5 metres
Max speed (with 3 persons): 30–45 knots

STANDARD ENGINES
Twin inboard diesel engines, 380–570 Hp

STANDARD PROPULSION
Sterndrive, waterjets or outboards

BOAT CONSTRUCTION
The hull is marine-grade aluminium with a solid foam fender and spray-coated polyurethane finish. The wheelhouse is manufactured in composite using casting forms for consistent component geometry. The vessel is fitted with professional-grade components and is ISO 9001:2015 certified.

ONBOARD LAYOUT AND EQUIPMENT
The fore cabin includes a toilet room with shower, a resting bench and a pantry. The main deck houses the control station, a seating group and a resting area. The working deck is equipped with a slipway for a small inspection boat and fittings such as a hydraulic net-hauler, a capstan and a diving ladder. A foldable bow entry improves access for personnel and equipment.

SPECIFICATIONS

• Overall length: 12 metres
• Breadth extreme: 3.5 metres
• Max speed (3 persons): 30-45 knots
• Standard engines: Twin inboard diesel engines, 380-570 Hp
• Standard propulsion: Sterndrive, waterjets or outboards
• Seating capacity: up to 6 persons
• Fore cabin: toilet room with shower, resting bench, pantry
• Main deck: control station, seating group, resting area
• Working deck: slipway for small inspection boat, hydraulic net-hauler, capstan, diving ladder
• Foldable bow entry for easier access
• Hull: marine aluminium with solid foam fender and spray coated polyurethane
• Wheelhouse: composite construction (cast forms)
• Certification: ISO 9001:2015
