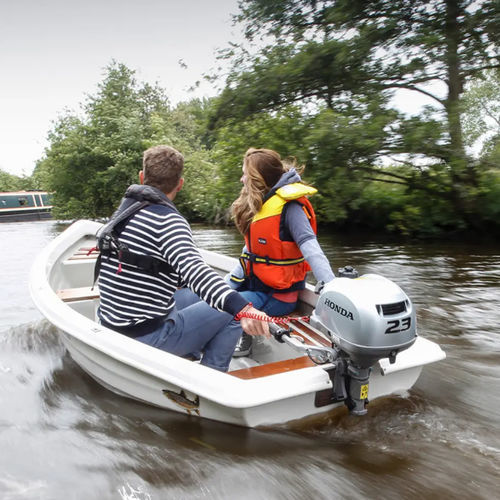

Outboard engine BF2.3 seriesgasolineboatingrecreational
Add to favorites
Compare this product
Characteristics
- Type
- outboard
- Power source
- gasoline
- Market
- boating, for boat, recreational
- Cooling system
- air-cooled
- Ignition
- manual start
- Other characteristics
- portable, 4-stroke
- Power
1.7 kW
(2.3 hp)- Displacement
57 cm³
(2 US fl oz)- Number of cylinders
1 unit
- Engine speed
Min.: 5,000 rpm
(31,416 rad.min-1)Max.: 6,000 rpm
(37,699 rad.min-1)- Bore
45 mm
(1.8 in)- Stroke
36 mm
(1.4 in)- Length
410 mm
(16 in)- Width
280 mm
(11 in)- Height
945 mm, 1,110 mm
(37 in, 44 in)- Weight
14 kg
(31 lb)
Description
Presentation The BF2.3 is quiet, efficient and environmentally considerate. Lightweight and compact, it is suitable for lake cruising, river navigation and coastal use. It is designed for easy starting, simple cleaning and minimal maintenance.
Key points
Main features
Technologies and uses
Technical specifications
Key points
- Innovative technologies - Easy to start with a single-cylinder 4-stroke delivering a smooth first-pull start.
- Comfort-oriented design - Lightweight and easy to carry with an ergonomic handle to reduce operator fatigue.
- Environmentally friendly - Engineered to run quieter and cleaner to limit impact on aquatic life.
Main features
- Easy navigation - Simple to operate, easy to clean and low-maintenance, ideal for a day outdoors.
- Air-cooled start - Controlled ignition timing technology ensures reliable starts in varying conditions.
- Reliable and efficient - Produces solid torque across conditions and can also be used as a starting motor.
Technologies and uses
- Throttle control - Smooth twist-grip throttle supplied with a throttle tensioner to set throttle position (function similar to a cruise control).
- Ready in a moment - Centrifugal clutch allows the engine to idle without engaging the propeller; applying throttle engages the clutch and drives the propeller.
- Quick pivot action - Fast steering pivot to reverse and go astern without shifting gears; the tiller rotates 180° to facilitate tight maneuvers.
- Propeller protection - Very light unit easy to lift clear of the water to protect the blades near shoals or shore; a spring-loaded locking device secures the motor when returned to use.
Technical specifications
- Displacement: 57 cc
- Configuration: single-cylinder 4-stroke
- Cylinders: 1
- Valves: 2
- Engine type: OHV
- Starting: system with optimized ignition timing (reliable start in varied conditions)
- Clutch: centrifugal clutch
- Handle: ergonomic twist-grip with throttle tensioner
- Additional features: lightweight, easy to carry and maintain; delivers strong torque and can be used as a starting motor
