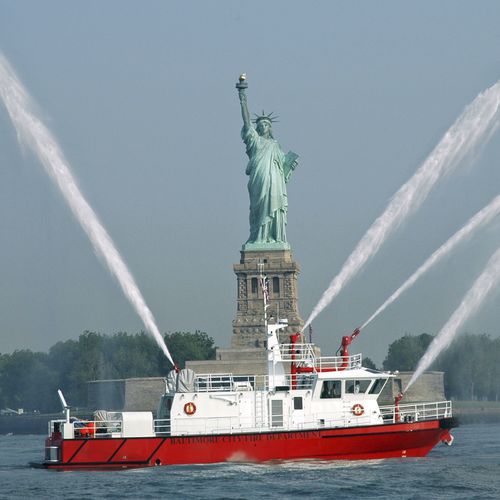

Fire fighting ship

fire fighting ship
fire fighting ship
Add to favorites
Compare this product



87'00" (26.52 m)


Vessel Particulars: Hull: Steel with Aluminum superstructure Length: 87ft Depth of Hull: 12 feet 4 inches Full load draft: 7 feet 3 inches Tonnage: 140 Long Tons Fuel capacity: two (2) tanks with total capacity of 2,589 gallons Maximum speed: 16 knots Propulsion: Twin screw, two (2) Caterpillar, 3512B diesels, rated 1,650 hp. each, @ 1,800 rpm. each turning a 61 inch, 5 blade propeller through a ZF Model 4650 reduction gear with a 3.04 to 1 ratio. Fire pumps: two (2) single stage Aker Kvaerner centrifugals, rated 6500 gpm. each @ 150 psi.,each driven by a Caterpillar, C-18, in-line 6 diesel, rated 715 hp. each @ 2,100 rpm. Monitors: Four (4) 2 remote operated and 2 manually operated Discharge outlets: Sixteen (16) total: (10) 2½”and (2) 5″ aft side of deck house. (3) 21/2″ and (1) 5″, at forward deckhouse. Foam: 1,000 gallons of 3% concentrate, in two (2) 500 gallon tanks Noise: helm and crew quarters 72 decibel (72dba) at full power
