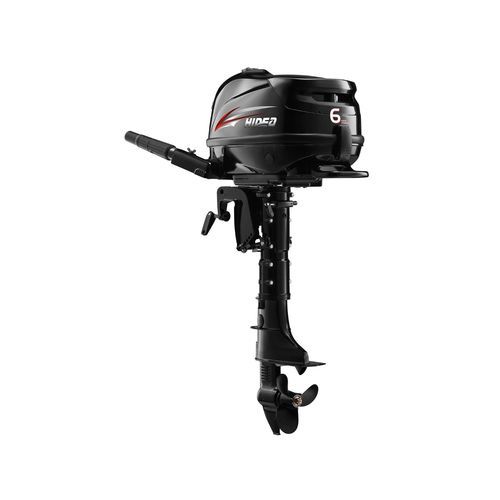

Long-shaft engine HDF6

outboardgasolineboating

Product Overview
The Hidea HDF6 is a lightweight 4-stroke outboard motor designed for skiffs, tenders and small-to-medium inflatable boats. With the largest displacement in its one-cylinder class, the HDF6 delivers reliable 6 hp propulsion with competitive fuel efficiency and compact portability. Short and long shaft variants are available, with either an internal 1.2 L tank or an optional external 12 L tank (built-in external fuel connector supplied).

Hidea HDF6 4-Stroke Benefits:

• Six-layer PPG paint finish for improved corrosion resistance.
• Anti-watergrass propeller design to reduce fouling.
• Compact and lightweight construction for easy handling and transport.
• Side-mounted shift lever for intuitive gear changes.
• Reduced vibration and induction noise for smoother, quieter operation.
• CE approved.
• Available with internal or external fuel tank options.

Easy Operation and Handling

• Digital CDI/TCI ignition for reliable starts and quick throttle response.
• Recoil starter with enlarged reel for easier manual starting.
• Shallow-water drive capability.
• Adjustable steering friction to reduce helm effort.
• Redesigned holding grip and larger carrying handle for transport.

User Convenience and Reliability

• Through-the-prop exhaust for lower noise levels.
• Thermostatically controlled water cooling for stable engine temperature.
• Stainless steel water pump housing liner for extended durability.
• High-grade marine aluminium alloy construction and zinc-coated internal passages for corrosion protection.

Specifications
Model: HDF6
Max. power: 4.41 kW (approx. 6 hp)
Max. RPM: 4500-5500
Engine type: 4-stroke
Cylinders: 1
Displacement: 139 cc
Bore x Stroke: 62 x 46 mm
Weight: S: 27.35 kg / L: 28.34 kg
Gear shifting: F-N-R
Ignition: TCI / Digital CDI
Cooling: Water (thermostatically controlled)
Starting: Manual (recoil)
Operation: Tiller
Fuel tank: Internal 1.2 L (standard); external 12 L option available (built-in external connector)
