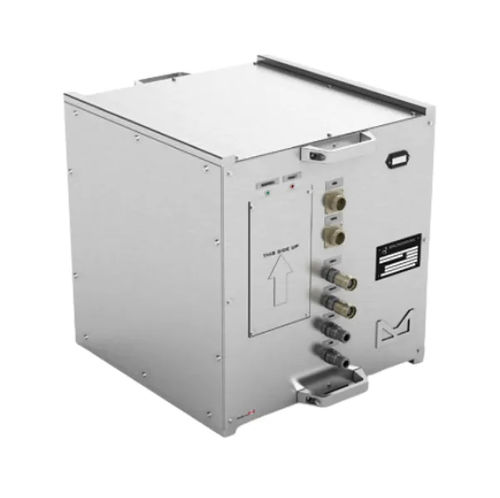

Ship condensing unit THE CUBE

for yachtsrefrigeration

The cube concept modularizes the traditional condensing unit to increase redundancy and flexibility. The cube allows for a one-to-one refrigeration system in which each space can be set to a fridge or freezer at the push of a button. Should one cube fail, a backup cube located on the rack can be swapped out in 30 minutes by any crew member, no refrigeration mechanic needed. The built-in panel trends all data which can be downloaded to a USB. This system delivers reduced cost, less downtime and longer patrol periods. AVAILABLE REFRIGERANTS R-134a R-1234ze TYPICAL APPLICATIONS Refrigeration Local air conditioning when a cube is paired with a fan coil unit. Can be connected in a train of up to 3 cubes to provide additional capacity. TESTED TO MEET FOLLOWING SPECIFICATIONS Shock qualification: MIL-STD-901 EMI qualification: DEF STAN 59-411 MATERIALS 90/10 copper-nickel coaxial condenser Stainless steel panels Welded steel frame
