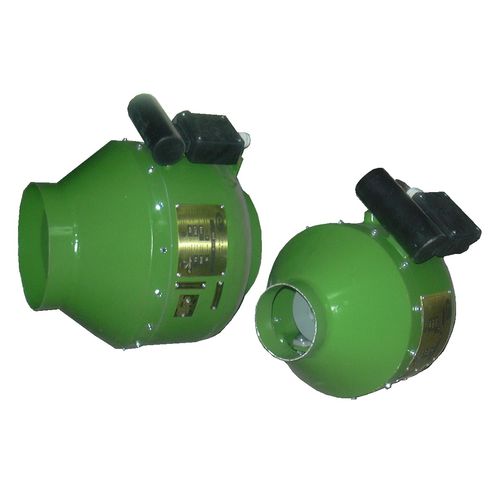

Marine duct fans WMR are destined for operation in ventilation systems of seagoing of unrestricted cruising area as well as offshore objects. Temperature of conveyed medium must not exceed +45 0C, dust content 0.3g/m3.
Made of steel or plastic, with epoxy coating
Speed-controllable using optional solid-state speed control
Fans can be used to supply or exhaust air
Fans can be installed horizontally and vertically
Fans can be installed in flexible or rigid duct
Extensive range of accessories
Casing and impeller are made of PA2 aluminum sheets, welded. A terminal box with G20 cable gland, for feeding cable connection, is fitted on the casing. Electric motor: induction, squirrel-type, 3-phase, IP55 enclosure, in marine execution.
The WMR duct fan is ABS and RMRS certified.
