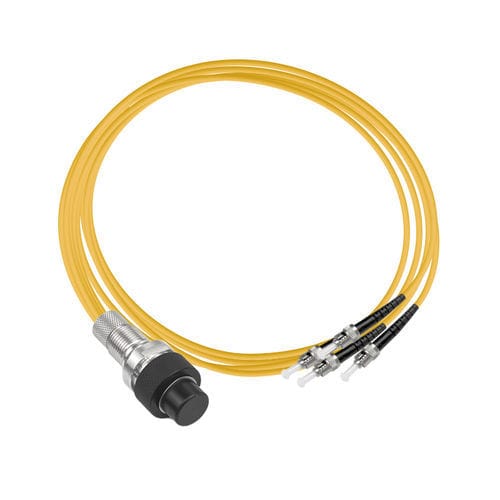

Subsea connector LH-Mfiber opticsfor aquacultureoceanographic
Add to favorites
Compare this product
Characteristics
- Type
- fiber optics
- Application domain
- subsea, for aquaculture, oceanographic
- Shape
- circular
Description
Product Description
Lanhe LH-M Fiber Optic Connector delivers reliable underwater optical transmission for subsea applications. This rugged connector ensures high-performance data transfer with full pressure resistance and environmental sealing.
Drawing Information:
Dimensions in mm
Threads in inches
1 inch = 25.4mm
Connector Specification:
Material Specification:
Options include:
Application Fields:
Characteristics / Technical Specifications
Lanhe LH-M Fiber Optic Connector delivers reliable underwater optical transmission for subsea applications. This rugged connector ensures high-performance data transfer with full pressure resistance and environmental sealing.
Drawing Information:
Dimensions in mm
Threads in inches
1 inch = 25.4mm
Connector Specification:
- Single mode optical specification:
- Wave length: 1310-1650 nm
- Nominal loss: 1.0-1.5 dB
- Max. loss: Max 2.5 dB
- Fiber Channel: 1-4
- Fiber Type: 9/125 μm
- Multi mode optical specification:
- Wave length: 850-1300 nm
- Nominal loss: 1.0-1.5 dB
- Max. loss: Max 2.5 dB
- Temperature Rating: -20℃~+50℃
- Depth Rating: 6000m
- Pigtail Connector: ST, LC, FC, SC optional
Material Specification:
- Shell: Stainless Steel (Titanium)
- Contacts: Ceramic
- O-ring: Nitrile
- Dust Cap: POM
- Pressure Cap: Stainless Steel
- Locking Sleeve: Stainless Steel
Options include:
- Cable length
- Shell material: stainless steel, titanium
- Thread length
Application Fields:
- Oil & Gas Industry
- Marine Renewable Energy
- Mine Detection & Neutralization
- Oceanographic Research & Exploration
- Underwater Communication & Networking
- Aquaculture & Underwater Farming
Characteristics / Technical Specifications
- Contacts: 1, 2, 4
- Single mode and multi mode optical support
- Nominal loss: 1.0-1.5 dB
- Max. loss: 2.5 dB
- Fiber Channel: 1-4
- Fiber Type: 9/125 μm
- Temperature Rating: -20℃~+50℃
- Depth Rating: 6000m
- Pigtail Connector: ST, LC, FC, SC optional
- Shell: Stainless Steel (Titanium)
- Contacts: Ceramic
- O-ring: Nitrile
- Dust Cap: POM
- Pressure Cap: Stainless Steel
- Locking Sleeve: Stainless Steel
