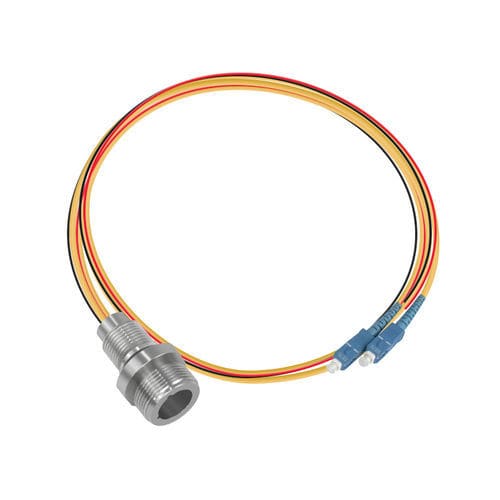

Subsea connector Fiber Optic (2 and 4, 2 Power 2 Fiber Channel)

fiber opticsfor aquacultureoceanographic research

Product Description
Lanhe Fiber Optic 2 and 4 Channels + 2 Power Contacts hybrid connector delivers combined optical and electrical transmission. Ideal for subsea and industrial applications requiring multi-signal integration in harsh environments.

Drawing Information:
Dimensions in mm
Threads in inches
1 inch = 25.4mm

Connector Specification:

• Single mode optical specification:
• Wave length: 1310-1650 nm
• Nominal loss: 1.0-1.5 dB
• Max. loss: Max 2.5 dB
• Multi mode optical specification:
• Wave length: 850-1300 nm
• Max. loss: Max 2.5 dB
• Temperature Rating: -20℃~+50℃
• Depth Rating: 1000/6000m
• Pigtail Connector: ST, LC, FC, SC optional

Material Specification:

• Shell: Stainless Steel (Titanium)
• Contacts: Ceramic
• O-ring: Nitrile
• Dust Cap: POM
• Pressure Cap: Stainless Steel
• Locking Sleeve: Stainless Steel

Options include:

• Cable length
• Shell material: stainless steel, titanium
• Thread length

Application Fields:

• Oil & Gas Industry
• Marine Renewable Energy
• Mine Detection & Neutralization
• Oceanographic Research & Exploration
• Underwater Communication & Networking
• Aquaculture & Underwater Farming

Characteristics / Technical Specifications

• Contacts: 2 or 4
• Single mode wavelength: 1310-1650 nm
• Single mode nominal loss: 1.0-1.5 dB
• Single mode max loss: 2.5 dB
• Multi mode wavelength: 850-1300 nm
• Multi mode max loss: 2.5 dB
• Temperature range: -20℃ to +50℃
• Depth rating: 1000/6000m
• Pigtail connector options: ST, LC, FC, SC
• Shell material: Stainless Steel or Titanium
• Contacts material: Ceramic
• O-ring: Nitrile
• Dust cap: POM
• Pressure cap: Stainless Steel
• Locking sleeve: Stainless Steel
