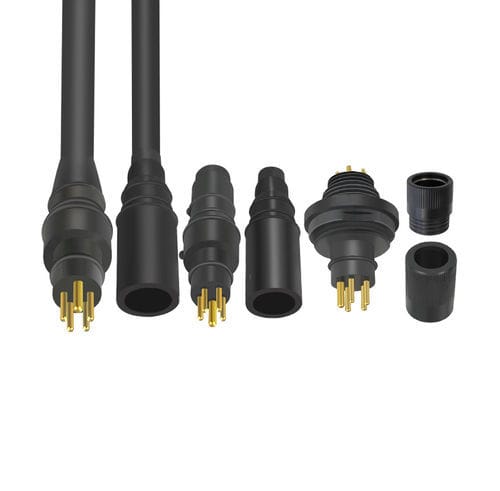

Marine connector Rubber Molded (5 Contacts)

electricfor aquaculturefor shipbuilding

Product Description:
Lanhe Rubber Molded 5 Contacts waterproof connector provides reliable performance in extreme conditions. Featuring a flexible rubber housing with strain relief for vibration resistance and IP68 protection in marine/industrial applications.

Drawing Information:
Dimensions in mm
Threads in inches
1 inch=25.4mm

Connector Specification:

• Contacts: 5
• Inline Cable
• Cable Specification: 18AWG
• Electrical Specification: 300V@3-10Amp
• Contact Resistance: ＜0.01Ω
• Insulation Resistance: ＞200MΩ
• Mating: ＞500
• Temperature Rating: -4℃~+60℃
• Depth Rating: 6000m

Inline Cable Color Code:

• 1. Black
• 2. White
• 3. Red
• 4. Green
• 5. Orange

Material Specification:

• Connector Body: Chloroprene rubber
• BH Body: 316L stainless steel/titanium
• Contacts: Gold plated brass
• Nut and Washer: 304 stainless steel
• O-ring: Nitrile
• Locking Sleeve: POM

Options include:

• Cable length
• Shell material: stainless steel, titanium
• Thread length

Application Fields:

• Oil & Gas Industry
• Marine Renewable Energy
• Mine Detection & Neutralization
• Oceanographic Research & Exploration
• Underwater Communication & Networking
• Aquaculture & Underwater Farming

Technical Specifications / Features:

• Number of contacts: 5
• Cable: 18AWG
• Voltage: 300V
• Current: 3-10A
• Contact resistance: ＜0.01Ω
• Insulation resistance: ＞200MΩ
• Mating cycles: ＞500
• Temperature range: -4℃~+60℃
• Depth rating: 6000m
• Connector body: Chloroprene rubber
• BH body: 316L stainless steel/titanium
• Contacts: Gold plated brass
• Nut and washer: 304 stainless steel
• O-ring: Nitrile
• Locking sleeve: POM
