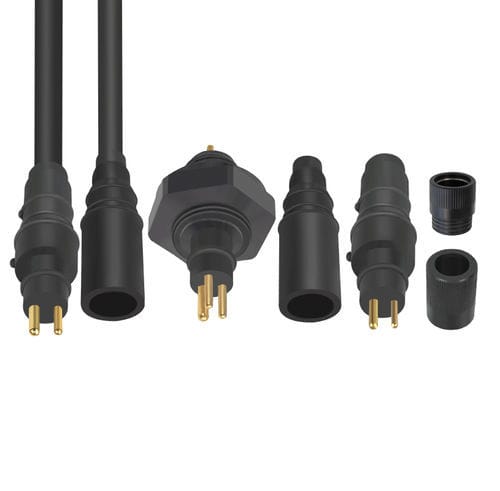

Underwater connector RM Rubber Molded (2,3 and 4 Contacts)

electricfor aquacultureoceanographic

Drawing Information:
Dimensions in mm
Threads in inches
1 inch=25.4mm

Connector Specification:
Contacts: 2, 3, 4
Inline Cable and BH Lead: 2, 3, 4 Contacts: 20AWG
Electrical Specification: 300V@3-6Amp
Contact Resistance: <0.01Ω
Insulation Resistance: >200MΩ
Mating: >500
Temperature Rating: -4℃~+60℃
Depth Rating: 6000m
Inline Cable Color Code:

• 1. Black
• 2. White
• 3. Red
• 4. Green

Material Specification:
Connector Body: Chloroprene rubber
BH Body: 316L stainless steel/titanium
Contacts: Gold plated brass
Nut and Washer: 304 stainless steel
O-ring: Nitrile
Locking Sleeve: POM

Options include:

• 1. Cable length
• 2. Shell material: stainless steel, titanium
• 3. Thread length

Application Fields:

• 1. Oil & Gas Industry
• 2. Marine Renewable Energy
• 3. Mine Detection & Neutralization
• 4. Oceanographic Research & Exploration
• 5. Underwater Communication & Networking
• 6. Aquaculture & Underwater Farming

Caractéristiques / spécifications techniques :

• Contacts: 2, 3, 4
• Wire gauge: 20AWG
• Voltage: 300V
• Current: 3-6 Amp
• Contact resistance: <0.01Ω
• Insulation resistance: >200MΩ
• Mating cycles: >500
• Temperature range: -4℃ to +60℃
• Depth rating: 6000m
• Connector body material: Chloroprene rubber
• BH body material: 316L stainless steel/titanium
• Contact material: Gold plated brass
• Nut and washer: 304 stainless steel
• O-ring: Nitrile
• Locking sleeve: POM
