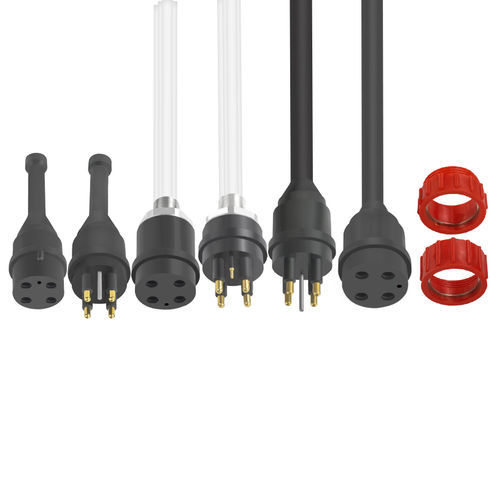

Subsea connector High Power (4 Contacts)electricfor aquaculturefor shipbuilding
Add to favorites
Compare this product
Characteristics
- Type
- electric
- Application domain
- subsea, for aquaculture, oceanographic, for shipbuilding
- Shape
- circular
- Contact number
- 4 contacts
- Other characteristics
- inline
Description
Product Description
Lanhe High Power 4 Contacts connector delivers robust electrical performance for industrial applications. Featuring heavy-duty construction with superior current capacity, this waterproof connector ensures reliable power transmission in harsh environments.
Drawing Information
Dimensions in mm
Threads in inches
1 inch = 25.4mm
Connector Specification
Contacts: 4
Inline Cable: 6 mm²
BH Lead: 6 mm²
Electrical Specification: 600V@50Amp
Contact Resistance: ＜0.01Ω
Insulation Resistance: ＞200MΩ
Mating: ＞500
Temperature Rating: -4℃~+60℃
Depth Rating: 6000m
Inline Cable Color Code:
Material Specification
Connector Body: Chloroprene rubber
BH Body: 316L stainless steel/titanium
Contacts: Gold plated brass
Nut and Washer: 304 stainless steel
O-ring: Nitrile
Locking Sleeve: POM
Snap Ring: Stainless steel
Options include
Application Fields
Characteristics / Technical Specifications
Lanhe High Power 4 Contacts connector delivers robust electrical performance for industrial applications. Featuring heavy-duty construction with superior current capacity, this waterproof connector ensures reliable power transmission in harsh environments.
Drawing Information
Dimensions in mm
Threads in inches
1 inch = 25.4mm
Connector Specification
Contacts: 4
Inline Cable: 6 mm²
BH Lead: 6 mm²
Electrical Specification: 600V@50Amp
Contact Resistance: ＜0.01Ω
Insulation Resistance: ＞200MΩ
Mating: ＞500
Temperature Rating: -4℃~+60℃
Depth Rating: 6000m
Inline Cable Color Code:
- Black
- White
- Red
- Green
Material Specification
Connector Body: Chloroprene rubber
BH Body: 316L stainless steel/titanium
Contacts: Gold plated brass
Nut and Washer: 304 stainless steel
O-ring: Nitrile
Locking Sleeve: POM
Snap Ring: Stainless steel
Options include
- Cable length
- Shell material: stainless steel, titanium
- Thread length
Application Fields
- Oil & Gas Industry
- Marine Renewable Energy
- Mine Detection & Neutralization
- Oceanographic Research & Exploration
- Underwater Communication & Networking
- Aquaculture & Underwater Farming
- Marine Construction & Infrastructure
Characteristics / Technical Specifications
- Contacts: 4
- Inline Cable: 6 mm²
- BH Lead: 6 mm²
- Electrical Specification: 600V@50Amp
- Contact Resistance: ＜0.01Ω
- Insulation Resistance: ＞200MΩ
- Mating: ＞500
- Temperature Rating: -4℃~+60℃
- Depth Rating: 6000m
- Connector Body: Chloroprene rubber
- BH Body: 316L stainless steel/titanium
- Contacts: Gold plated brass
- Nut and Washer: 304 stainless steel
- O-ring: Nitrile
- Locking Sleeve: POM
- Snap Ring: Stainless steel
