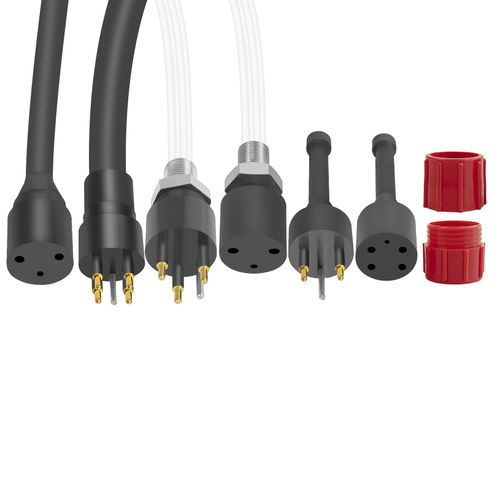

Subsea connector Power Battery (2,3 and 4 Contacts)electricfor aquaculturemarine
Add to favorites
Compare this product
Characteristics
- Type
- electric
- Application domain
- subsea, for aquaculture, oceanographic research, for shipbuilding, marine
- Contact number
- 4 contacts, 2 contacts, 3 contacts
Description
Product Description
Lanhe Power Battery 2,3 and 4 Contacts connectors deliver robust electrical performance for demanding applications. Featuring heavy-duty construction with superior current capacity, these industrial-grade connectors ensure reliable power transmission in harsh environments.
Drawing Information
Dimensions in mm
Threads in inches
1 inch = 25.4mm
Connector Specification
Contacts: 2, 3, 4
Inline Cable: 4 mm²
BH Lead: 4 mm²
Electrical Specification: 600V @ 25-40Amp
Contact Resistance: ＜0.01Ω
Insulation Resistance: ＞200MΩ
Mating: ＞500
Temperature Rating: -4℃~+60℃
Depth Rating: 6000m
Inline Cable Color Code
Material Specification
Connector Body: Chloroprene rubber
BH Body: 316L stainless steel/titanium
Contacts: Gold plated brass
Nut and Washer: 304 stainless steel
O-ring: Nitrile
Locking Sleeve: POM
Snap Ring: Stainless steel
Options include
Application Fields
Caractéristiques / Spécifications techniques
Lanhe Power Battery 2,3 and 4 Contacts connectors deliver robust electrical performance for demanding applications. Featuring heavy-duty construction with superior current capacity, these industrial-grade connectors ensure reliable power transmission in harsh environments.
Drawing Information
Dimensions in mm
Threads in inches
1 inch = 25.4mm
Connector Specification
Contacts: 2, 3, 4
Inline Cable: 4 mm²
BH Lead: 4 mm²
Electrical Specification: 600V @ 25-40Amp
Contact Resistance: ＜0.01Ω
Insulation Resistance: ＞200MΩ
Mating: ＞500
Temperature Rating: -4℃~+60℃
Depth Rating: 6000m
Inline Cable Color Code
- 1. Black
- 2. White
- 3. Red
- 4. Green
Material Specification
Connector Body: Chloroprene rubber
BH Body: 316L stainless steel/titanium
Contacts: Gold plated brass
Nut and Washer: 304 stainless steel
O-ring: Nitrile
Locking Sleeve: POM
Snap Ring: Stainless steel
Options include
- 1. Cable length
- 2. Shell material: stainless steel, titanium
- 3. Thread length
Application Fields
- 1. Oil & Gas Industry
- 2. Marine Renewable Energy
- 3. Mine Detection & Neutralization
- 4. Oceanographic Research & Exploration
- 5. Underwater Communication & Networking
- 6. Aquaculture & Underwater Farming
- 7. Marine Construction & Infrastructure
Caractéristiques / Spécifications techniques
- Contacts: 2, 3, 4
- Inline Cable: 4 mm²
- BH Lead: 4 mm²
- Electrical Specification: 600V @ 25-40Amp
- Contact Resistance: ＜0.01Ω
- Insulation Resistance: ＞200MΩ
- Mating: ＞500
- Temperature Rating: -4℃~+60℃
- Depth Rating: 6000m
- Connector Body: Chloroprene rubber
- BH Body: 316L stainless steel/titanium
- Contacts: Gold plated brass
- Nut and Washer: 304 stainless steel
- O-ring: Nitrile
- Locking Sleeve: POM
- Snap Ring: Stainless steel
