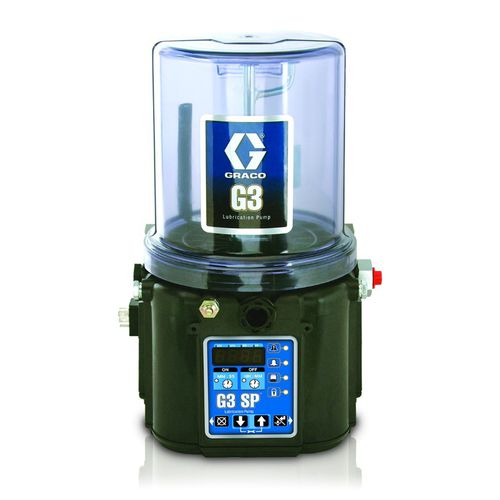

Shipyard pump G3 SP
lubricationoilelectric

shipyard pump
shipyard pump
Add to favorites
Compare this product


Characteristics

Application domain
for shipyard
Applications
lubrication
Fluid
oil
Operation
electric, automatic

Description

G3 SP Automatic Lubrication for Series Progressive Systems Built-in Controller Extend machinery life, reduce operating costs and increase productivity with a Graco G3 today! G3 SP is designed with one M12 input to work with a proximity, is very simple to program and includes one adjustable pump element–standard, plus room for two more. Multiple reservoir choices to choose from Built-in controller to monitor cycles and dictate time between lube events Low level indicator provides low warning and shut-down alarm Manual run initiates lube cycle on-demand Password protection safeguards settings G3 Automatic Lubrication Pump Maximum Working Pressure Maximum Working Pressure 35.1 MPa/351.6 bar Power 100–240 VAC 88 - 264 VAC, 0.8 A current, 90 VA Power, 47/63 Hz, Single phase 12 VDC 9 - 16 VDC, 5 A current, 60 W, inrush/locked rotor 12 A 24 VDC 18 - 32 VDC, 2.5 A current, 60 W, inrush/locked rotor 6 A Outputs — Alarm Relay Rated Load Resistive: 0.4 A at 125 VAC, 2 A at 30 VDC, Inductive: 0.2 A at 125 VAC, 1 A at 30 VDC Max Operating Voltage Resistive: 250 VAC, 220 VAC, Inductive: 250 VAC, 220 VDC
