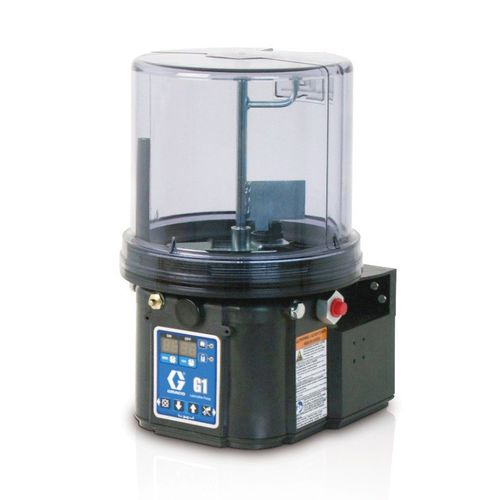

G1 Plus
Automatic Lubrication for Series Progressive Metering Systems
Built-in Controller
Choose the user friendly Graco G1 Pump when you need a reliable, simple alternative to manual lubrication. Work smarter and get better productivity from your equipment with G1 Series lubrication pumps.
Built-in on/off timer
Optional low level feature that shuts down the pump when emptry
Manual run initiates lube cycle on-demand (remote option also available)
Choice of 2, 4, or 8 liter reservoirs
Connect to DC (12 or 24v) and AC (90-240v)
Power:
100-240 VAC
88 - 264 VAC; 0.8 A current, 90 VA Power, 47/63 Hz, Single phase, inrush/locked rotor, max 40A (1ms)
12 VDC
9 - 16 VDC; 5 A current, 60 W, inrush/locked rotor 12 A
24 VDC
18 - 32 VDC; 2.5 A current, 60 W, inrush/locked rotor 6 A
Fluid:
Grease Models
Grease NLGI 000 - #2
Oil Models
At least 40 cSt oil.
Pumps
1
Pump Output
4 cm³ / minute
Pump Outlet
1/4-18 NPSF. Mates with 1/4-18 NPT male fittings
Reservoir Size
2 Liters, 4 Liters, 8 Liters
IP Rating
IP69K
Ambient Temps
(-40°C to 70°C)
