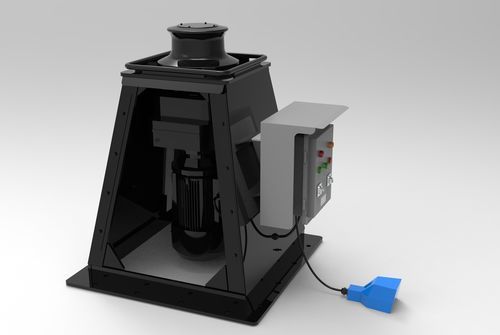

Free standing capstans are designed and manufactured for safe and efficient handling of vessels. By preventing the heavy lifting of mooring lines, capstans greatly reduce handling time for mooring linesmen.
Capstans are typically an integral part of the complete QRH package manufactured and supplied by Glen. Available in standard versions with a nominal pull from 1 ton to 3 tons, Glen capstans can also be supplied as separately freestanding units or add-on units.
GLEN provide a wide range of add-on options which can fit most different mooring situations, and ensure safer and more intelligent operation.
Mechanical (backstop)/Electrical (brake-motor)
3Ø + Earth: 380 to 480 VAC(±10%) @50Hz or 60 Hz (±5%)
±10 to ±30 meters/minute
316L stainless steel/Grade 8.8 H.D.G.
Horizontal motor/Dual-speed capstan/Low-temperature executions
ATEX certified for Zones 1-2 or non-hazardous areas
Lubricated for life’ maintenance-free design
3-phase squirrel cage induction motor with direct vertically mounted planetary
Foot switch and/or push button operation
Local non-reversible or reversible type motor starter
Optionally equipped with mechanical or electric braking device
Single and dual speed capstans available
