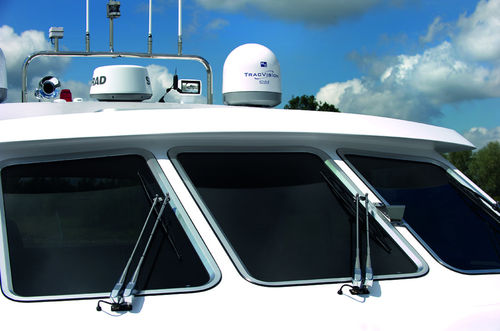

Fixed window SLIM LINE

for yachtsrectangular

SMOOTH DESIGN The Gebo Slim Line windows are suitable for CE areas B-C-E. Due to the sleek appearance, the Slim Line windows fit perfectly with the other Gebo marine glazing products. All joints of the Slim Line windows are hard soldered for a watertight finish. The glass is fitted in a sealant bedding between the outer and inner aluminium frames. The inner rim is fixed with M4 screws to the outer frame. The fastenings in the internal rim are covered by a black rubber filler strip. As with the Thermic Line windows, the Light Line windows are made with silicone rubber. Unlike EPDM rubbers, silicone rubbers do not dehydrate and for years, they retain their resili- ence. The Slim Line windows can be delivered with round and mitred corners. The Slim Line Windows are suitable for a glass thickness of 5 mm, 6 mm and 8 mm. Upon request, the Slim Line windows are fitted with insulated glass. EASY MOUNTING The windows are fitted by clamping the inner frame onto the back of the outer frame. The inner frame is mounted onto the outer frame by simply screwing the inner rim onto the back of the outer frame by means of M4 screws.
