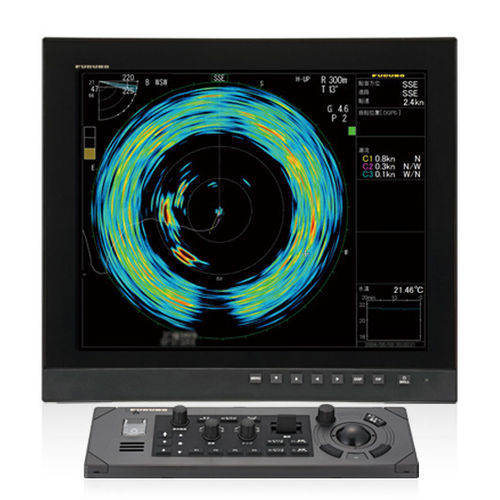

Ship sonar CSH-10

for boatsmultibeamsingle-frequency

Overview
The 360-Degree Omni Scanning Sonar CSH-10 provides instant all-round underwater situational awareness around the vessel. Operating at a high frequency (83.5 kHz standard, selectable 81.5–85.5 kHz) with full digital beamforming, it improves discrimination between fish, seabed and structures and offers a narrow beam for near-surface school detection. Built-in motion sensor and Furuno beam stabilization deliver stable echoes even in rough seas.

Markets

• Recreational boats
• Fishing vessels

Features

• New Tilt Indicator — On-screen indicator shows tilt angle, linear/horizontal/vertical cursor distances, beam detection range and upper/lower beam-edge depths for clear echo positioning.
• Long-range detection up to 900 m — Enhanced long-range performance (example: wreck at ~850 m). Motion sensor increases long-range target detection by ~20% versus previous model.
• Beam stabilization — Motion sensor plus automatic beam-angle correction; transmitter and receiver beams can be stabilized independently for stable detection in rough seas.
• Superior resolution — Auto Filter and stabilization reduce noise for clearer images to identify fish schools and seabed structures.
• Fish estimate mark — Measures two fish-school candidates, displaying length, width, area and an Estimated index value for comparison (requires vessel speed, course and heading input).
• Target lock function — Automatically tracks a school, showing distance, depth, speed and direction. Two lock modes: position tracking (Target Mark) and fish-school tracking (Fish) (requires vessel speed, course and heading input).
• Echo data recording/playback — Save still and motion images to internal memory or optional external storage and play back saved data from the menu (option).
• Compact control unit — Smaller SCU-002 with function keys, tilt lever, RotoKey™ and large trackball for simpler installation and operation.
• Remote control options — Deck control for range, tilt and sensitivity. Wired remote FSV-854-MK2, wireless SCU-001 (Bluetooth®, up to 4 controllers), and Small Switch Box SCU-003 for basic up/down and power control.
• New transducer protective dome and hull units — Available with 400 mm or 600 mm travel. Faster raise/lower: 7 s (400 mm), 10 s (600 mm). Allowable ship speed: 20 kn normal, 18 kn during raise/lower operation. Retrofit-compatible with CSH-8L MARK-2 / CSH-5L MARK-2 hull tubes.
• NavNet TZtouchXL compatibility — Display echoes, overlay charts and operate CSH-10 from TZtouchXL touch displays (software V25.11 or later).

Specifications

• General:
  Scanning: Full digital beam forming
  Frequency: 83.5 kHz (selectable 81.5–85.5 kHz)
  Basic Range: 50, 100, 200, 300, 400, 500, 600, 700, 800, 900, 1000, 1100, 1200, 1400, 1600, 2000 m
• Display:
  Pixel Number: 1280 x 1024 (SXGA)
  Colors: 32 colors (sonar images), 6 colors (marks)
  Orientation: Head-up, North-up, Course-up (sensor required)
  Additional Functions: Interference rejecter, Echo average, Noise limiter, Signal level, Automatic target tracking, Auto-retraction, Fish school alarm
• Transceiver Unit:
  Pulse Length: 0.5 to 20 ms
• Hull Unit:
  Raising/Lowering Time: 7 s (400 mm), 10 s (600 mm)
  Allowable Ship's Speed: 20 kn (18 kn for raise/lower)
  Transducer Travel: 400 mm or 600 mm
• Power Supply:
  Processor Unit: 12–24 VDC: 4.0–2.0 A
  Transceiver Unit: 24 VDC, 7.2 A max
  Hull Unit: 24 VDC, 10 A max
• Environment:
  Temperature: Processor/Transceiver -15°C to +55°C; Transducer -5°C to +35°C; Hull Unit 0°C to +55°C; Control/Remote -15°C to +55°C
  Relative Humidity: ≤93% at +40°C
  Waterproofing: Transducer IPX8; Control Unit IP22 (tabletop) / IP25 (flush); Hull Unit IPX2; Remote IPX4 (FSV-854-MK2) / IP56 (SCU-001); Small Switch Box front IP56 / rear IP22
