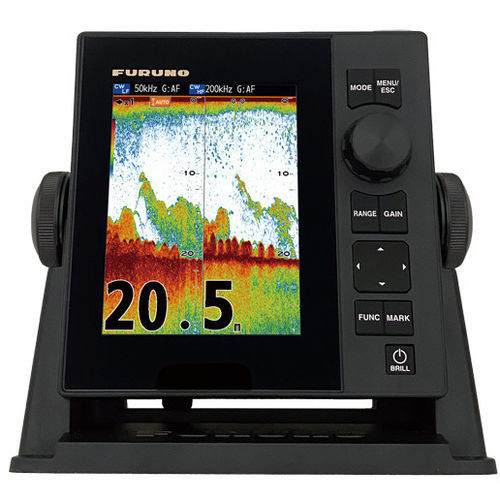

Boat fish finder FCV-689

for work boatsfishing boatfor pleasure boats

Equipped with Furuno technology for clear echo images to support professional fishing operations.

Introduction
Compact, lightweight 5.7" color LCD fish finder designed for installation on recreational and commercial vessels. Simple interface and reliable sonar performance help operators locate and assess fish targets efficiently.

Markets

• Recreational boats
• Fishing vessels
• Workboats and survey boats

Key features

• ACCU-FISH™: Estimates fish size (10–199 cm) at depths of 2–100 m. Fish marks selectable as circle or square and displayed in two sizes (Small: 10–49 cm; Large: ≥50 cm). Size indications may vary; consult the Operator's Manual before use.
• Bottom Discrimination: Identifies dominant seabed type (mud, sand, gravel, rock) to assist locating productive grounds.
• Color Expansion: Expands echo color range to help distinguish bottom, structure and fish close to the seabed.
• Scrolling Back: Review up to three full screens of recorded echoes to track passing schools.
• Heave Correction with Satellite Compass™: Compensates for vessel motion when used with Satellite Compass SCX-21 (quad-antenna) for accurate heave data.

Equipment list (standard)

• Display unit: FCV-689 (with hard cover)
• Installation materials and standard spare parts
• Inner-hull mounting kit
• Flush-mounting kit
• Extension cable: 10 m for transducer (10 pin)
• Cable assembly: converter cable (10 pin–10 pin, 6 pin) for ST sensor/water-temp sensor, 0.2 m
• Cable assembly: 2 m for display unit connection
• Transducers: compatible models include 520-5PSD*, 520-5MSD*, 520-PLD*, 525-5PWD*, 525T-PWD*, 525T-BSD*, 525T-LTD/12*, 525T-LTD/20*, SS60-SLTD/12*, SS60-SLTD/20*
• Transducer (Speed/Temp): 525STID-PWD*, 525STID-MSD*
• Speed/Temp sensor (ST sensor): ST950-FJ46-1, ST950-FJ46-2
• Water temp sensor: T-04MSB, T-04MTB
• * Compatible with ACCU-FISH™ and Bottom Discrimination functions

Documentation (available)

• FCV-689 brochure (English)
• FCV-689 Operator's Manual

Technical specifications

• Display: 5.7" color LCD (VGA 640 × 480)
• Frequency: 50 and 200 kHz
• Transducer power: 600 W
• Range scale: 2–1200 m (units selectable: m, ft, fm, HR, pb)
• Pulse length & PRR: Max. 3,000 pulse/min
• Display modes: single frequency, dual-frequency, zoom, A-scope, bottom-lock, bottom zoom, marker zoom, heave correction*, bottom discrimination, ACCU-FISH™
• Waterproofing: IP56
• Power supply: 12–24 VDC, 1.0–0.5 A
• Size (W × H × D): 210 × 198 × 120 mm
• Weight (bracket mount): 1.1 kg
