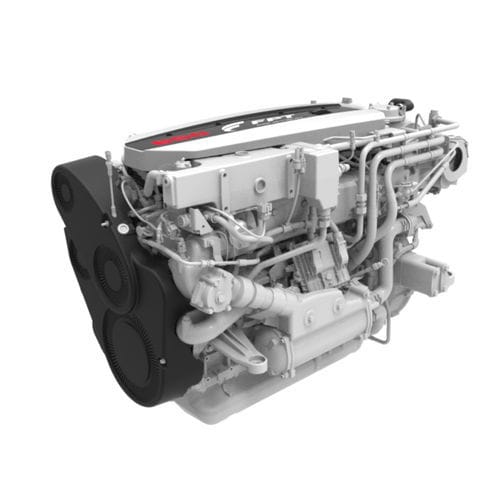

Inboard engine Cursor 9dieselrecreationalfor boat
Add to favorites
Compare this product
Characteristics
- Type
- inboard
- Power source
- diesel
- Market
- for boat, recreational, for yacht
- Technology
- turbocharged, common-rail, mechanical fuel injection, SCR
- Engine type
- in-line
- Ignition
- electric start
- Power
Min.: 404 kW
(549.3 hp)Max.: 735 kW
(999.3 hp)- Displacement
Min.: 8,700 cm³
(294 US fl oz)Max.: 15,900 cm³
(538 US fl oz)- Number of cylinders
6 unit
- Engine speed
2,530 rpm
(15,896 rad.min-1)- Bore
117 mm
(4.6 in)- Stroke
135 mm
(5.3 in)- Length
1,288 mm
(51 in)- Width
868 mm
(34 in)- Height
962 mm
(38 in)- Weight
940 kg
(2,072 lb)
Description
Overview
The Cursor 9 range from FPT Industrial comprises marine diesel engines for pleasure craft, offering high power density and compact installation for yachts and sportfishing vessels.
Applications
Key features
Performance
Technical specifications & compliance
The Cursor 9 range from FPT Industrial comprises marine diesel engines for pleasure craft, offering high power density and compact installation for yachts and sportfishing vessels.
Applications
- Pleasure craft: yachts and recreational vessels up to ~22 m
- Sportfishing boats and similar leisure applications
Key features
- High power density and torque
- Optimized fuel consumption and reduced emissions
- Low noise and vibration levels
- Robust structural design for maritime operation
- Customizable configurations and electronic control options
Performance
- Displacement range: 8.7–15.9 L
- Power range (overall): 125–735 kW
- Recreational versions: 404–735 kW
- Example peak power: up to 735 kW at 2,300 rpm (15.9 L high-performance variant)
- Maintenance intervals: up to 600 hours
Technical specifications & compliance
- Manufacturer: FPT Industrial
- Model family: Cursor 9
- Configurations: inline layouts; turbocharged and aftercooled options
- Injection and exhaust options: mechanical, common rail, MPI; SCR exhaust aftertreatment available
- Optional equipment: electronic remote control, monitoring systems
- Emission and class standards: IMO MARPOL, EU-RCD, EU-IWV, USA-EPA Recreational & Commercial; class approval RINA
