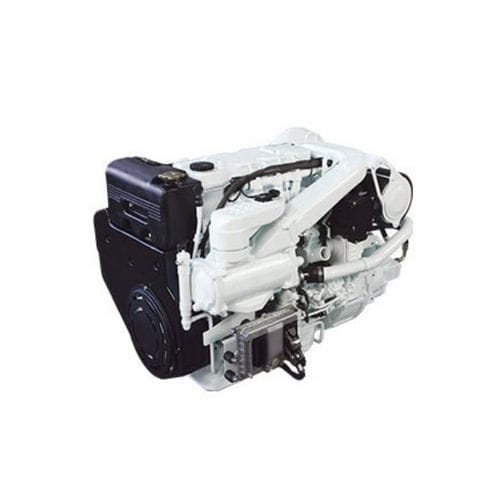

Inboard engine N40 250 E
propulsiondieselboating

inboard engine
inboard engine
Add to favorites
Compare this product


Characteristics

Type
inboard, propulsion
Power source
diesel
Market
boating, commercial
Technology
turbocharged, common-rail, mechanical fuel injection
Other characteristics
4-stroke
Power

100 ch, 150 ch, 200 ch, 230 ch (100 hp)

Number of cylinders

4 unit

Displacement

4 l (1 gal)

Engine speed

3,000 rpm (18,850 rad.min-1)

Bore

102 mm (4 in)

Stroke

120 mm (4.7 in)

Length

850 mm (33 in)

Width

708 mm (28 in)

Height

785 mm (31 in)

Weight

490 kg (1,080 lb)

Description

Compact and cost-effective Short load response time High power density with minimum fuel consumption Up to 600 hours service intervals (among the best in the category) Description The NEF Series is the widest among FPT Industrial engine families for pleasure and professional marine duties, with four different displacements available in mechanical and electronic version. “Professional range” NEF engines are characterized both by advanced mechanical fuel injection and electronic common rail systems, and provide high, constant power and torque delivery, reliability, low fuel and servicing costs. Keel-cooled versions are also available. “Pleasure range” NEF engines offer state-of-the-art Diesel technology (Common Rail and electronic systems, 4 valves/cylinder) and ensure high performance, light weight and compact design – together with low smoke, noise and vibration. They suit cruisers and yachts up to 12 meters. The NEF Series is offered in sport, high-performance, light-, medium- and heavy-duty versions, and can be customized on request. Options include electronic remote control, monitoring systems and compliance to international emission standards as IMO MARPOL, EU-RCD, EU-IWV, USA-EPA Recreational & Commercial and Propulsion homologation as RINA. ​SPECIFICATIONS Thermodynamic cycle: Diesel 4 stroke Air handling: TCA Cylinders arrangement: 4L Bore x Stroke: Millimeters 102 x 120 Total displacement: liters 3.9 Valves per cylinder: number 4 Cooling System: liquid Direction of Rotation (viewed facing flywheel): CCW Engine management: by EDC (Electronic Diesel Control) Injection System: ECR

Catalogs

N40 250E
N40 250E
2 Pages
N40 250 E
N40 250 E
2 Pages
