Fire fighting ship Branddirektor Westphal

fire fighting ship
fire fighting ship
fire fighting ship
fire fighting ship
fire fighting ship
Add to favorites
Compare this product


Characteristics

Length

44.14 m
(144'09" )

Width

9.8 m
(32'01" )

Draft

2.9 m
(9'06" )

Displacement

560 t
(617 us ton)

Speed

12 kt

Passenger capacity

32 unit

Crew capacity

4 unit

Motor power

1,000 kW
(1,359.6 hp)

Description

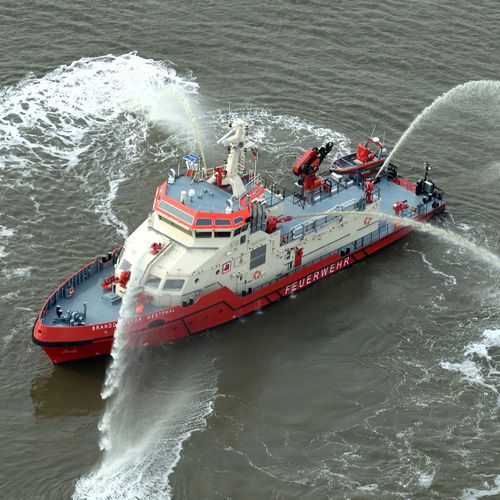

At a length of 43 meters and a beam of 10 meters, the "Branddirektor Westphal" is Europe's largest fireboat. Fassmer designed and built the vessel, which is operated by the Hamburg Port Authority (HPA). The special features of the fire fighting vessel include three remote-controlled fire monitors, a gas detection and warning system, hull ice class E1 and the ecolabel "Blauer Engel". On board the vessel is a first-aid station featuring the full range of ambulance equipment. The main tasks are fire fighting, rescue and technical assistance as well as inspection trips. With these capabilities, it fulfills the highest requirements of the operator. General Info Customer / Operator._Flotte Hamburg GmbH & Co. KG Area of Operation....„Port of Hamburg Hull No...............7030 Delivery..............2018 Ship's Name.....................BranddirektorWestphal Fire Fighting Appliances (FiFi l+ll) •3 diesel engine-operated fire pumps (2,400 mVh @ 14 bar) driven by CAT C32 each 1,134 kW •3 remote-controlled fire monitors, (180 m / 110 m @ 2,400 mVh) •3 remote-controlled water/foam fire fighting monitors, (110m / 45 m @ 600 mVh) •water-fog-self protection System, deck manifolds Spécial Features •gas détection and warning System •gas protection System (Citadel) •rescue platform at the stern, 6 m working / rescue boat •ambulance care room •spécial work crâne (2 ton @ 14 m outreach) •rescue gangway •gensets: 2 x CAT C18 each 563 kVA; 1 x CAT C4.4 108 kVA •exhaust gas treatment (EU Level 5) for M.E. •hull ice class El compilant •ecolabel„Blauer Engel“ compilant
