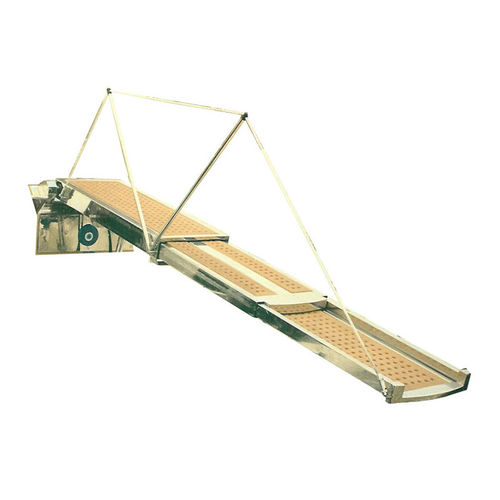

Boat gangway EZB-1100 series
telescopichydraulicremote-controlled

boat gangway
boat gangway
boat gangway
boat gangway
boat gangway
boat gangway
boat gangway
Add to favorites
Compare this product


Characteristics

Application domain
for boats
Type
telescopic
Operation
remote-controlled, hydraulic
Structural material
stainless steel
Length

2,000 mm, 2,500 mm, 3,000 mm (78.74 in)

Maximum payload

250 kg (551 lb)

Description

Product Features Polished AISI 316L stainless steel construction with seawater resistance teakwood or UV (Ultraviolet) and wear and tear resist plastic grating. Handrails are automatickly located to their position after full length of gangway. Stainless steel lifting and telescopic actuating cylinders. Possible to mount the hydraulic and electrical power units even to confined and narrow places by their small dimensions. Gangways can be produced by polished stainless steel (Shiny) or painted in line with customer’s choice. Wireless remote control and fixed control on panel are exist System can be operated by hand pump in case of power-cut. System is suitable for dinghy lifting with 250 kg of loading capacity in full length like a crane. Depending on the solidity of the mounting point on the hull, gangways can be produced in two or three parts. Options Fiber optic or led bar illumination. Fixed or moving boat chock choices compatible with your gangway. Different lifting apparatus for different loads (Tender, jet-ski, etc.) Handrails for both sides.
