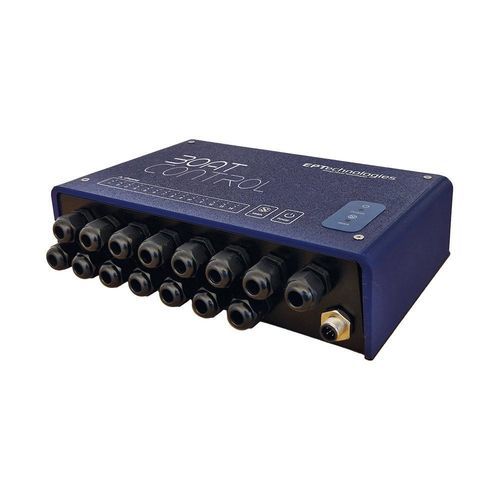

Boat monitoring and control system BoatControl

marinedigitalWiFi

Product Overview
BoatControl is a cutting-edge marine automation solution designed to simplify vessel management and keep you connected to your boat's equipment anytime, anywhere. With 14 versatile channels, BoatControl allows seamless connection and control of any onboard equipment, integrating effortlessly with existing NMEA2000 systems.

Key Features

• Remote and local control: Take full command of your boat's equipment whether you are onboard or miles away.
• Real-time monitoring: Monitor data, fine-tune settings, and keep your boat running optimally through the BoatControl app.
• App availability: The BoatControl app is available on Android, iOS, and web browsers, ensuring seamless communication and customization via Bluetooth, Wi-Fi, and the Cloud.
• Easy setup: Effortlessly set up and control connections remotely, manage contact points, and assign functions to buttons from your mobile device.

Technical Specifications
L x W x H
253 x 158 x 61 mm
Power Supply
9 to 30 VDC
Normal Power Consumption
3 W, max 6.5 W
Peripherals
Channels: 14 contacts 10 A, max. load 100 A, Ports: 5-pin for NMEA 2000
Connectivity
Bluetooth, Wifi
Status Indicators
Blue for power, yellow for NMEA 2000
Orientation
Vertical / Horizontal
Mounting
225 x 100 mm with Ø5 mm mounting hole
Certifications
CE, ROHS

Characteristics / Technical Specifications

• Dimensions: 253 x 158 x 61 mm
• Power supply: 9 to 30 VDC
• Normal power consumption: 3 W, max 6.5 W
• Channels: 14 contacts, 10 A each, max. load 100 A
• Ports: 5-pin for NMEA 2000
• Connectivity: Bluetooth, Wi-Fi
• Status indicators: Blue for power, yellow for NMEA 2000
• Orientation: Vertical / Horizontal
• Mounting: 225 x 100 mm with Ø5 mm mounting hole
• Certifications: CE, ROHS
