For sewage drainage waters

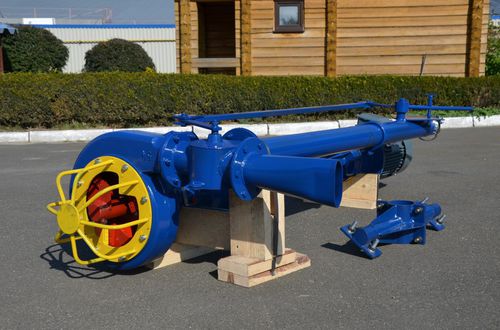

The pump NPF 1/10 is designed for:
mixing and chopping of large manure deposits in collectors;
pumping of manure through the pipeline to manure lagoons adjacent to farm;
oading of manure into vehicles for transportation;
pumping of utility fecal and industrial sewage wastes with the content of abrasive particles up to 1%, except for petrochemical products.
The pumps of our manufacture present an advanced model of the pump NTsI-F-100 (НЦИ-Ф-100) previously produced in the post-Soviet countries. This is a centrifugal semi-submersible pump with a semi-open impeller. Pump drive - by means of electric motor. A chopper is double-stage, blade-type, that can cut large fractions of manure and mix sewages in manure collector.
The pump can handle:
manure (feces) into farm manure lagoons or vehicles for transportation;
utility and industrial sewage waters, inter alia at the edifices of sewages’ biological treatment;
mixtures of non-aggressive liquids with hydrogen ion exponent pH = 6...10, including feces, sand, slag, etc.
Depending on the customer requirements, we can provide various complements for the pump NPF 1/10. It can be assembled with drainage nozzle and valve.
All the pumps are equipped with a screw for additional mechanical mixing before sewage get into the pump.
Capacity – up to 100 m3/h;
Head (at zero capacity) – 8-10 m;
Maximum pumping depth (standard version of the pump) - 3 meters, special versions - 4 or 5 meters;
Electric motor power – 11 kW;
Speed of rotation – 1000 rpm;
Discharge pipe diameter – 100 m;
Flow part material – grey cast iron;
Dimensions – 1050 х 550 х 4155 mm;
