VSAT antenna DSi13
SatcomKu-bandfor boats

VSAT antenna
VSAT antenna
Add to favorites
Compare this product


Characteristics

Network
VSAT, Satcom, Ku-band
Application domain
for boats, for ships, for yachts
Type
radome
Other characteristics
professional, for masts, coastal
Electrical power

Max.: 40 W

Min.: 8 W

Operating temperature

Max.: 55 °C
(131 °F)

Min.: -30 °C
(-22 °F)

Elevation

Max.: 115 °

Min.: -20 °

Diameter

153 cm
(60 in)

Height

168 cm
(66 in)

Weight

120 kg
(265 lb)

Description

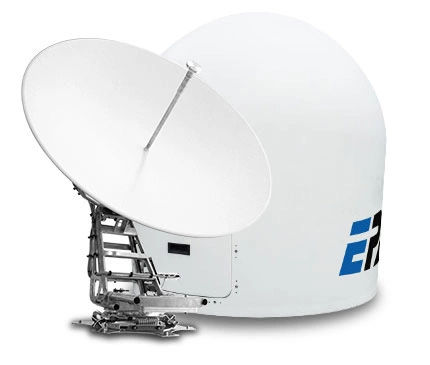

130cm Ku-Band GEO/MEO/LEO VSAT Terminal EPAK DSi13 PRO is a Ku-band maritime VSAT antenna system. The antenna enables GEO/MEO/LEO satellite tracking ensuring the antenna is ready for all future networks. The 130 cm diameter reflector system is so far the largest antenna in EPAK's portfolio. Its high-end technical features allow reliable functionality even in regions with fading signals or under harsh weather conditions. Future Proof GEO/MEO/LEO DSi13 PRO is designed with accurate satellite tracking performance with our proven tracking algorithm that covers GEO, MEO, and LEO constellations. High RF Performance The system is easily upgradeable to a high-power BUC system enabling higher throughput.
