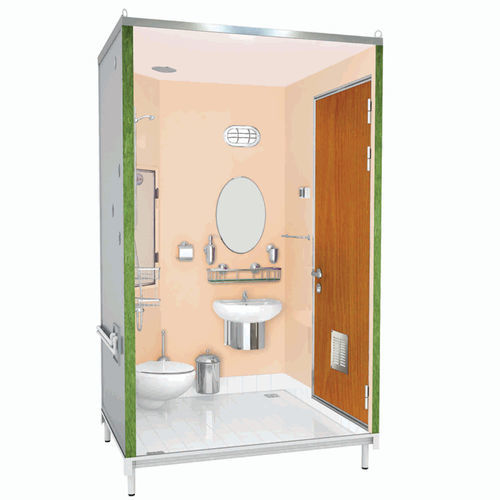

Ship prefabricated bathroom 911

Product description
Portable sanitary cabin designed for temporary or permanent installations. Can be transported and lifted by ropes from top corner eyebolts when using a crane, or lifted from below with a forklift using a wooden beam. Unit height is adjustable. Toilet pedestal is fixed to the bottom base structure with dedicated supporters. Accessories are mounted on steel circular fittings inserted into the outer walls; these fittings are removable and reinsertable.

Drainage and structure
Water discharge trap systems are stainless steel and odor‑proof. The toilet pedestal is fixed to a steel tray‑type bottom base that is waterproof. Doors are fire‑resistant and fitted with ventilation grilles. Walls and ceiling are manufactured from fire‑resistant sandwich panels. Fresh water supply pipes are PPRC. Grey water discharge pipes are stainless steel.

Assembly, maintenance and options
Fast and easy on‑site assembly. Hot and cold water inlets are fitted with filters. A wide range of colours is available. The reservoir system is located outside the wet unit walls; the reservoir is accessible for repair via a maintenance cover and can be serviced from inside the unit when the cover is opened. Various models and sizes can be produced. Electrical components have IP protection. PVC surfaces are covered with a protective film to prevent dirt and scratching.

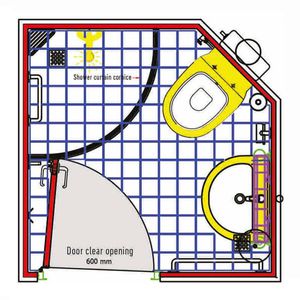

Cabin Sub Models

• Sub model images and variants available (see cabin sub models).

Technical specifications

• Transportable: lifting by ropes from top corner eyebolts (crane) or lifting from below with forklift using a wooden beam
• Height: unit height is adjustable
• Toilet pedestal: fixed to bottom base structure with dedicated supporters; fixed to bottom base steel tray‑type structure and waterproof
• Accessories: steel circular fittings mounted into outer walls; removable and reinsertable
• Water discharge trap systems: stainless steel and odor‑proof
• Doors: fire‑resistant with ventilation grille
• Walls & ceiling: fire‑resistant sandwich panels
• Fresh water pipes: PPRC
• Grey water discharge pipes: stainless steel
• Assembly: fast and easy
• Water inlets: hot & cold inlets have filters
• Colours: wide range of colours available
• Reservoir system: located outside wet unit walls; reservoir accessible for repair via maintenance cover
• Electrical materials: IP protection
• PVC surfaces: covered with protective film against dirt and scratching
• Various models and sizes available
