Ship prefabricated bathroom 111

Our wet units can be completely manufactured tailor-made according to your requirements.

Product Overview

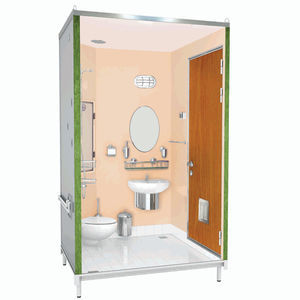

Model-111 is a transportable sanitary unit combining a shower and WC for temporary or mobile installations. It can be lifted by ropes attached to the top corner eyebolts for crane handling or lifted from below with a forklift using a wooden beam. The wet-unit height is adjustable. The closet pedestal is fixed to the base structure with dedicated supports. Accessories are mounted with a steel circular fitting inserted into the outer walls and can be removed and reinstalled.

Water and Drainage
Water-discharge trap systems are stainless steel and smell-proof. The closet pedestal is mounted on a unique tray-type waterproof steel base. Doors are fire-resistant and include ventilation grills. Walls and ceiling are produced from fire-resistant sandwich panels. Fresh water supply pipes are PPRC; grey water discharge pipes are stainless steel.

Installation and Maintenance
Fast and easy assembly. Hot and cold water inlets are equipped with filters. Multiple color options are available. The reservoir system is located outside the wet-unit walls and becomes accessible for repair when the maintenance cover is opened. Various models and sizes are available. Electrical components have IP protection. PVC surfaces are protected with a removable film against dirt and scratching.

Cabin Sub Models

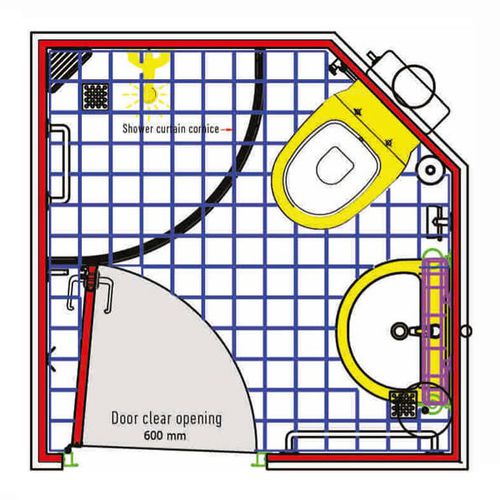

• Sub model images available illustrating alternative cabin configurations.

Technical specifications

• Transportable; lifting by ropes from top corner eyebolts (crane) or by forklift from below using a wooden beam.
• Wet-unit height adjustable.
• Closet pedestal fixed to base structure with dedicated supports; unique tray-type waterproof steel base.
• Accessories mounted with steel circular fittings inserted into outer walls; removable and reinsertable.
• Stainless steel, smell-proof water-discharge trap systems.
• Doors fire-resistant with ventilation grills.
• Walls and ceiling made from fire-resistant sandwich panels.
• Fresh water pipes: PPRC; Grey water discharge pipes: stainless steel.
• Hot and cold water inlets include filters.
• Reservoir system located outside wet-unit walls; reservoir accessible for repair via maintenance cover.
• Various models and sizes available; multiple color options.
• Electrical components with IP protection (rated).
• PVC surfaces protected with a removable film against dirt and scratching.
