Ship floor sandwich panel Class A-60
boat deckingfor fire protectionmineral wool

Ship floor sandwich panel - Class A-60 - Ensar Gemi ve Yan Sanayi A. Ş. - boat decking / for fire protection / mineral wool

Add to favorites

Compare this product

Go to the Ensar Gemi ve Yan Sanayi A. Ş. website for more information

Characteristics

Applications: for ship floors, for fire protection, boat decking
Core: mineral wool
Facing: steel
Other characteristics: fire-retardant, IMO MED certified
Width: 300 mm
(12 in)
Length: 1,000 mm
(39 in)
Thickness: 62 mm
(2 in)
Weight: 29.4 kg/m²
(0 psi)

Description

Features

Approved and certified to fire Class A-60 for marine deck applications.
Fast, easy and flexible installation technique suitable for ship decks.
Units joined by spot welding; no additional tying required.
Available in stock.
Constructed from galvanized steel sheet and mineral wool core.
Units can be cut on site with a grinder or similar tools.

Dimension
Standard dimension of Class A-60 deck panel is 62 x 300 x 1000 mm.

Installation
A - Levelling Of Steel Deck
If significant unevenness appears on the steel deck surface, level the deck to ensure a flat base.

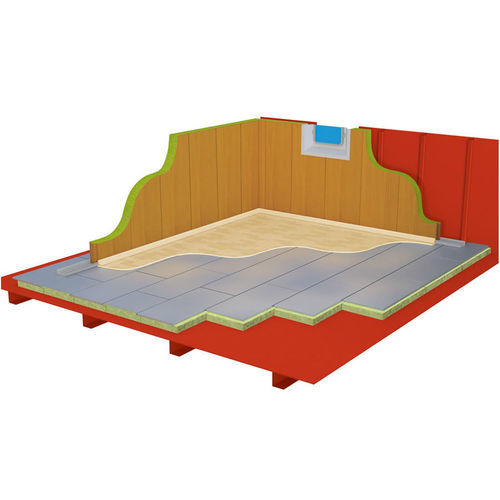

B - Assembling Of The Floating Floor
The mineral wool side of the deck panel faces downward. Place panel units on the steel deck starting from a corner, aligning units closely without gaps. After alignment, join units by spot-welding at max 300 mm spacing along long and short sides.

Technical specifications

Material: Galvanized steel sheet and mineral wool
Standard dimensions: 62 x 300 x 1000 mm
Fire rating: Class A-60 (approved and certified)
Joining method: Spot welding (max 300 mm spacing)
Installation: Fast, easy, flexible; units aligned from a corner; mineral wool side down
Cutting: Can be cut with a grinder or similar tools
Availability: In stock
