CCTV video camera HERNIS EX292
for shipsIRdigital

CCTV video camera
CCTV video camera
Add to favorites
Compare this product


Application domain
for ships
digital, IR, full HD
24 V
stainless steel
Protection level
IP66, IP67
Other characteristics

33 unit

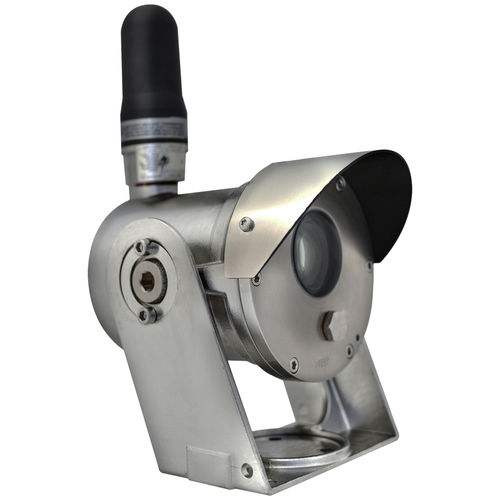

HERNIS EX292 IP cameras from Eaton Crouse-Hinds are extremely compact, measuring just 155x192x158mm (including bracket). These versatile cameras are exceptionally resilient and will withstand the most extreme environmental and operating conditions. The range carries global Ex and Marine certifications and has IP66 & IP67 ingress protection. EX292 IP compact fixed cameras can be supplied with or without a wiper. They are built from high quality electro polished 316L stainless steel and feature a scratch-resistant, tempered glass window. These cameras come with a built-in heater, flexible low power and PoE options, and a mounting bracket as standard. Offering a 1080p resolution and 33x zoom, EX292 cameras can operate in light levels as low as 0.01 lux. They use ONVIF or Eaton’s HERNIS™ Flex IP control protocol, which facilitates remote diagnostics and future software upgrades. COMPACT DESIGN An extremely versatile camera station that requires very little space EXPLOSION PROOF Certified and safe for operation in explosive areas TEMPERATURE CLASSIFICATION Lowest surface temperature classification possible (T6) Design Features Full HD resolution DNV type approval Ex certified for Zone 1 (gas group IIC) and Zone 21 (dust) Digital WDR (wide dynamic range) Ex e junction box (optional) IR sensitive Flexible powering (30 VAC, 24 VDC, PoE) Mounting bracket included Automatic day/night function Scratch proof, tempered glass Auto focus with manual override Multi-cable accommodated Built-in heating 33x optical zoom Sunshield (optional)
