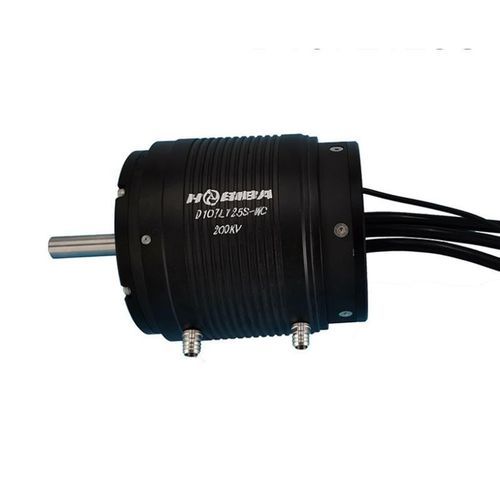

Inboard engine D107L125 series

inboard engine
inboard engine
inboard engine
inboard engine
Add to favorites
Compare this product


inboard, outboard
Power source
Engine type
Cooling system
Other characteristics

17.3 kW, 17.5 kW, 17.8 kW, 18.6 kW
(23.5 hp, 23.8 hp, 24.2 hp, 25.3 hp)

Engine speed

Max.: 13,440 rpm
(84,446 rad.min-1)

Min.: 12,600 rpm
(79,168 rad.min-1)


12,800 g, 13,500 g, 13,600 g, 13,800 g, 14,300 g
(452 oz, 476 oz, 480 oz, 487 oz, 504 oz)


With an advanced 10-pole encapsulated core and 107mm diameter, this series compact DC motors deliver high torque up to 22 N.M with maximum 18KW output power . Thanks to the unique sealing configuration design, these motors are tested waterproof IP68 according to ingress protection class, and can operated permanently underwater and have been widely used for high speed underwater thruster applications, like small boat motor, jetboard, outboard motor, electric trolling motor. etc Robust & durable: Outer shell in black anodizing aluminum alloy, prevent corrosion and oxidation. High performance: Our motors provide extremely high torques with a minimum of power consumption. Silient: low-cogging electro-magnetic and dynamically balanced rotor, extremely silient and smooth operation. Efficiency: Our energy-efficient motors save energy and costs, efficiency up to 90%. Compact: High efficiency and high power density realized in a compact design. Long life: Double seal ball bearings with moisture resistant for long life Cooling solution: water-cooling & Air-Cooling. Shaft in SS316 Stainless Steel: withstand redial/axile stree,against corrosion We can also customize the winding to perfectly match your voltage, current, and maximum operating speed. Special shaft modifications, cables and connectors are available upon request. Can be customized for - Sensor or sensorless - Winding Current - Shaft Options - Cable and Connector - Kv Ratings - Mounting Options - Encoder or Non
*Prices are pre-tax. They exclude delivery charges and customs duties and do not include additional charges for installation or activation options. Prices are indicative only and may vary by country, with changes to the cost of raw materials and exchange rates.
